The ball seat adapter threads into the
upper xed platen
The load cell alignment plug threads into the
load cell and sits in the centering hole of the
lower yoke compression block
The UCM lower yoke compression block
connects to the lower yoke platen
The load ball adapter connects to the
ball seat adapter above and the load
cell below
Unit under test
Upper xed platen
Lower yoke platen

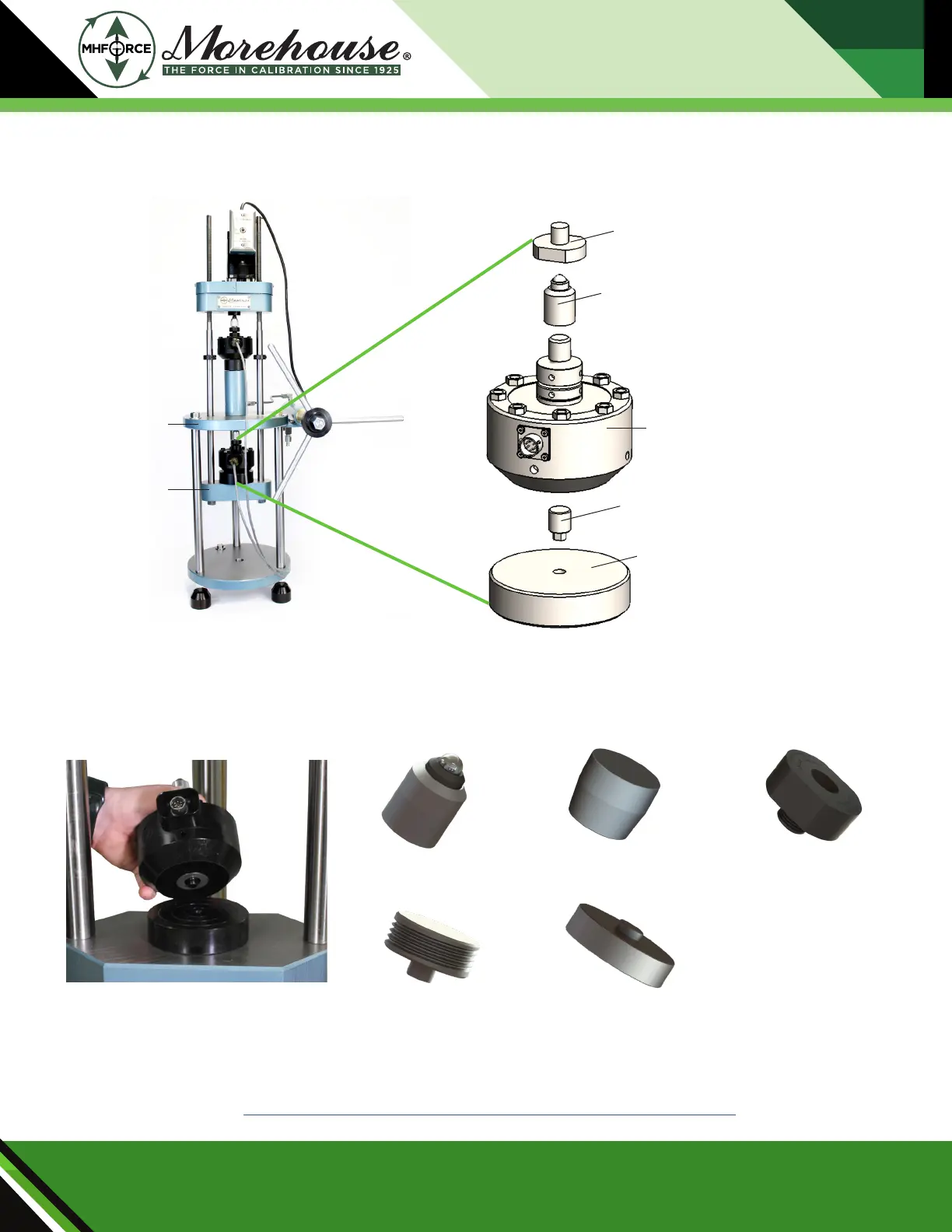

Figure 18: Setup for Compression Calibration
Figure 19: Adapters for the Unit Under Test
For more details see the Universal Calibrang Machine Adapters and Accessories PG-5202.
UCM Lower Yoke Compression Block
(UC-xxx-52)
UCM Ball Seat Adapter
(UC-xxx-51)
Load Ball Adapter (CCE-1)
Alignment Plug (CA)
ISO Compression Adapter
(CI-1)
