ADJUSTMENTS AND MAINTENANCE – FOLDING WHEELCHAIRS | USER MANUAL
21
T 1-866-650-6555 F 1-888-966-6555 E-mail info@motioncomposites.com
– Reinstall and tighten screw (2) and the washer.
– Repeat the same steps on the other side.
– Reinstall the backrest upholstery with screw (1) and tighten
to fit snugly.

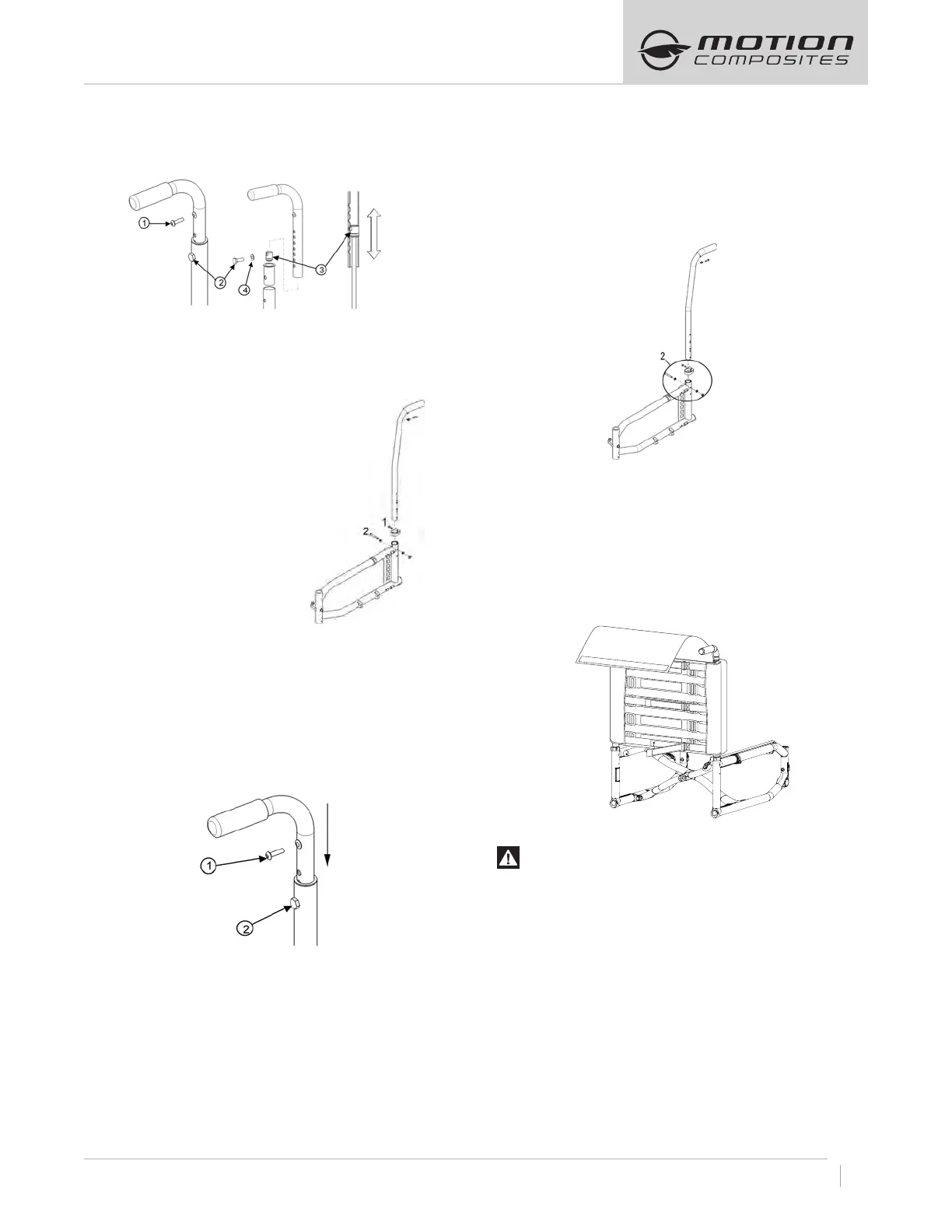

8.5.6 ADJUSTING THE BACKREST HEIGHT
(INTEGRATED PUSH HANDLE)
– The backrest with integrated push handles can be adjusted by
loosening bolt 1 and removing the bolt 2 on each side of the
frame.
– Move the back canes up or down to
the desired height.
– Handles and back upholstery will
be adjusted accordingly.
8.5.7 INSTALLING/REMOVING
STANDARD BACK UPHOL
STERY
– Remove screw (1) that holds the back upholstery.
– Pull backrest upholstery down several centimeters to gain
access to screw (2), which holds the push handle.
– Remove screw (2) and then remove the backrest handle.
– Remove or install back upholstery.
– Once, the new back upholstery is installed, reinstall the handles
by aligning them with the mounting holes.
– Reinstall and tighten screw (2) firmly.
– nstall back upholstery at and fix it firmly with screw (1) on each
back cane.
8.5.8 INSTALLING/REMOVING BACK UPHOLSTERY
(INTEGRATED PUSH HANDLE BACK CANES)
– Remove screw (1) that holds the back upholstery.
– Remove the bolts (2) on each side of the frame and
– remove the back canes.
– Remove or install back upholstery
– Reinstall and tighten screw (2) firmly.
– Install back upholstery at and fix it firmly with screw (1) on each
back cane.
8.5.9 INSTALLING/REMOVING ADJUSTABLE TENSION
BACK UPHOLSTERY
– To remove the adjustable Tension Back Upholstery, use the
same steps as the standard back upholstery. Lift the back cover
to have access to the 2 bolts to remove the upholstery.
– To adjust the tension, first lift the back-cover flap to expose the
horizontal straps (a). Release the Velcro straps, then adjust
each strap individually using the Velcro or the buckle tension
adjustment system to the desired tension.
WARNING
AVOID over-tightening of the strap assembly as this may
cause damage to the integrity of the back canes.
Lastly, fold down the back-cover flap over the horizontal
adjustment straps to complete your adjustment.
