Motorola APX 4000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Disassembly 8-9
8.4.5.2 Removal of the Secondary Shield Assembly (32)

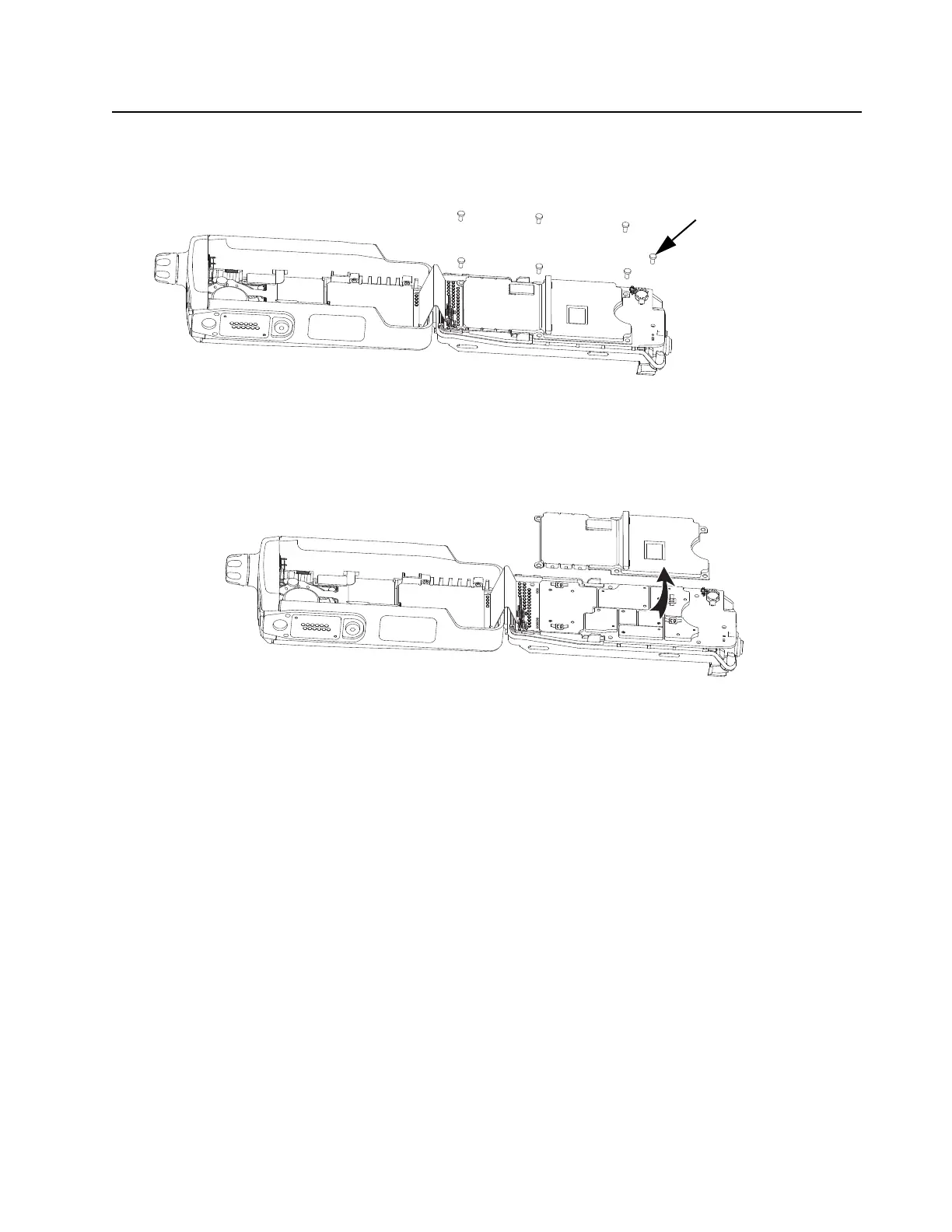

1. Remove the chassis screws (30) as shown in Figure 8-9.
Figure 8-9. Remove the chassis screws
2. With the chassis screws removed, lift the Secondary Shield Assembly (32) out from the
Chassis (41) as shown in Figure 8-10.
Figure 8-10. Remove the Secondary Shield Assembly
Chassis Screws (7)
