Motorola APX 4000 Basic Service Manual

7-14 Disassembly/Reassembly Procedures: Serviceable Components of the Main Sub-Assemblies

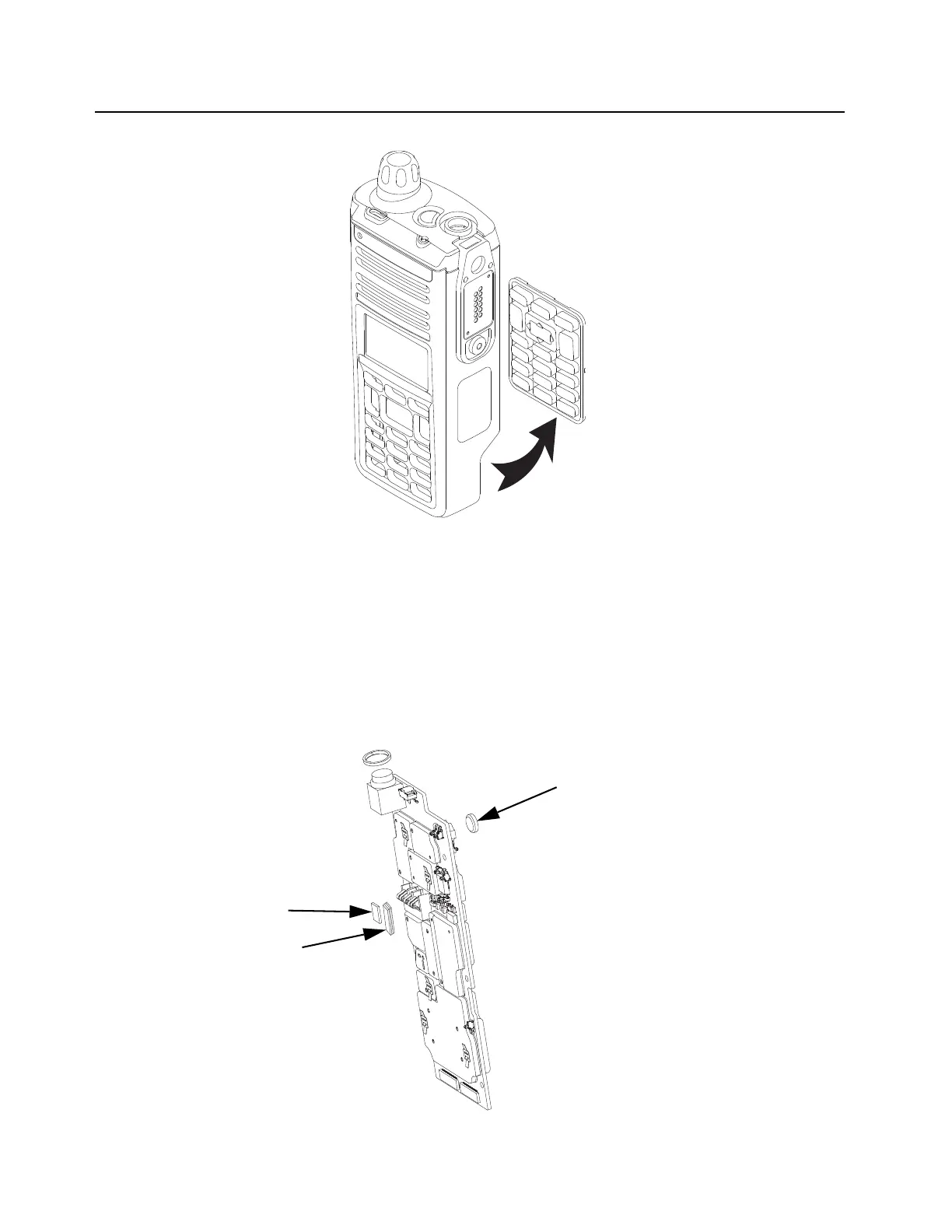

Figure 7-20. Remove the Keypad
7.4.6 Removal of the Front Kit Assembly (A)
1. Complete the steps in Section 7.4.5.1. and Section 7.4.5.5. through Section 7.4.5.7.
2. With the steps completed, the Front Kit Assembly (A) is obtained.
7.5 Serviceable Components of the Main Sub-Assemblies
7.5.1 Servicing Main Board Assembly
Figure 7-21. Serviceable Components – Main Board Assembly
Coin Cell
Thermal Pad
Absorber

Motorola APX 4000 Specifications

General

IP Rating	IP67
Operating Temperature	-30°C to +60°C
GPS	Optional
Frequency Range	VHF: 136-174 MHz, UHF: 380-470 MHz, 450-520 MHz
Power Output	VHF: 1-5W; UHF: 1-4W
Digital Protocol	APCO P25
Dimensions	5.2 x 2.4 x 1.5 inches (without battery)
