Motorola APX 4000 Basic Service Manual

Disassembly/Reassembly Procedures: Radio Disassembly 8-11

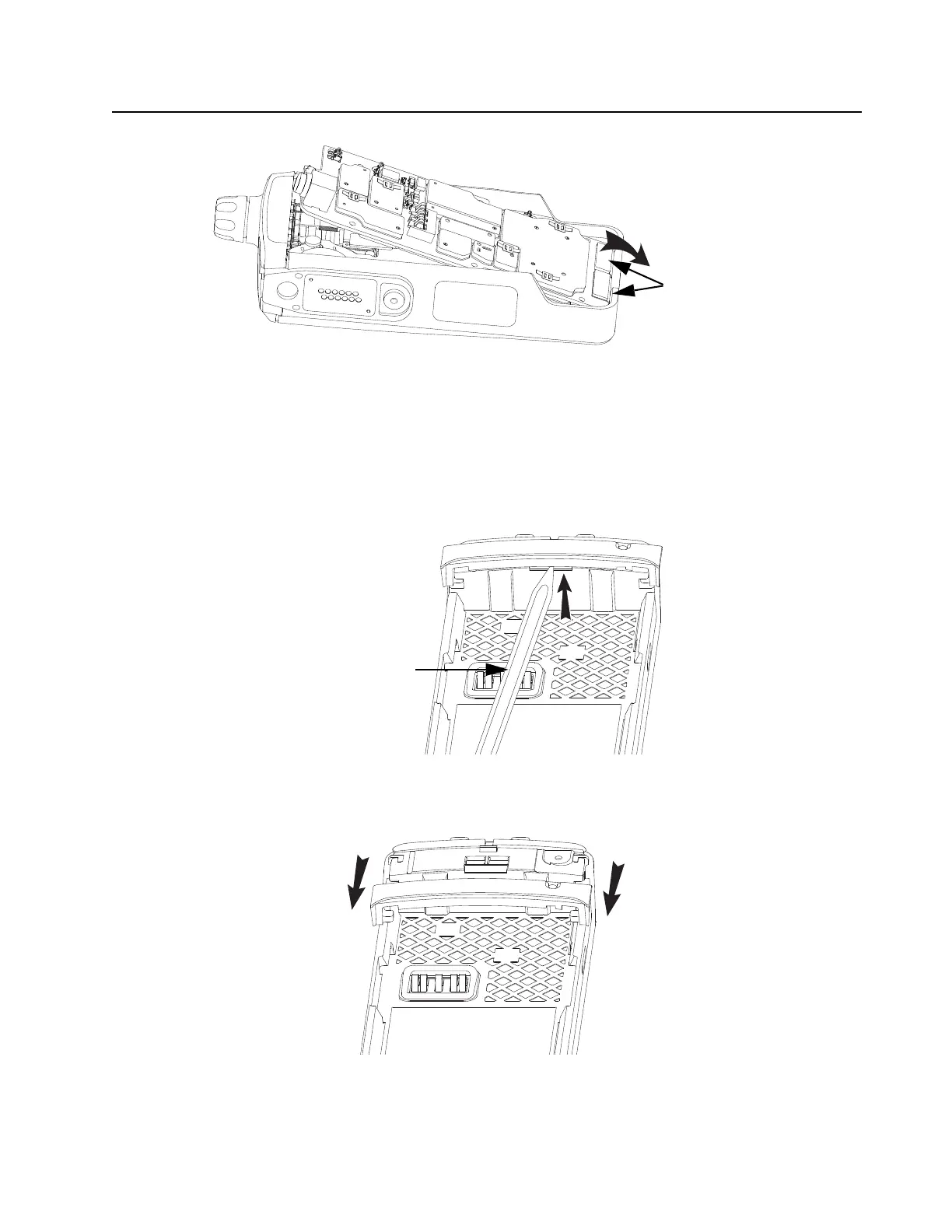

Figure 8-13. Unplug the Back Kit Flex connectors
8.4.5.4 Removal of the Shroud (47)
1. Place the black stick into the opening below the Shroud (47) to aid the disengagement of the
Shroud. With the black stick still in place, slide the Shroud downwards at both sides to
remove the Shroud from the Chassis (41).
Figure 8-14. Disengage the Shroud
Figure 8-15. Remove the Shroud
Back Kit Flex
Connectors
Black Stick

Motorola APX 4000 Specifications

General

IP Rating	IP67
Operating Temperature	-30°C to +60°C
GPS	Optional
Frequency Range	VHF: 136-174 MHz, UHF: 380-470 MHz, 450-520 MHz
Power Output	VHF: 1-5W; UHF: 1-4W
Digital Protocol	APCO P25
Dimensions	5.2 x 2.4 x 1.5 inches (without battery)
