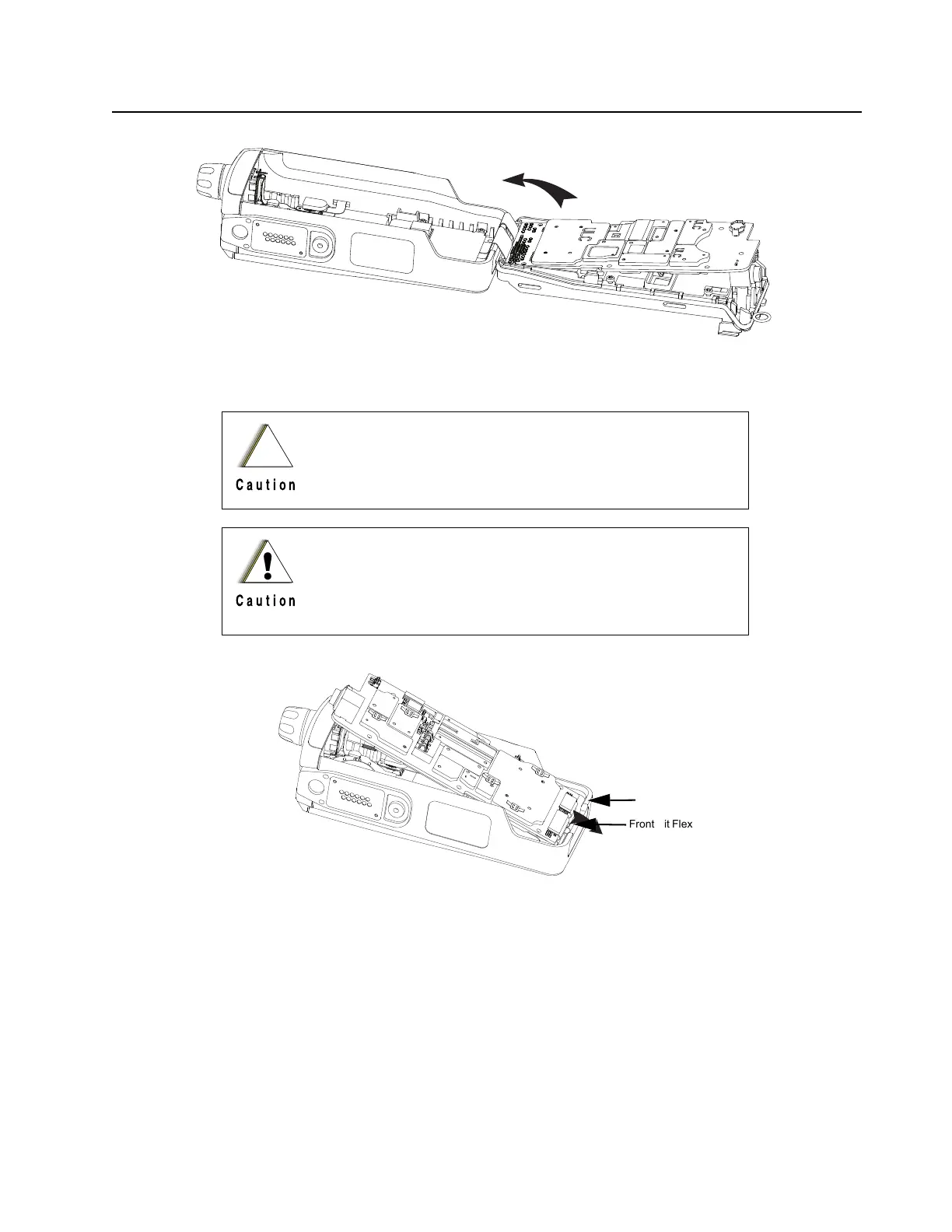

Disassembly/Reassembly Procedures: Radio Disassembly 7-9
Figure 7-11. Lift up the Main Board from the Chassis
Figure 7-12. Unplug the connectors on the Front Kit Flex and Keypad Flex
When separating the small interconnects, care is needed to
avoid damage to the interconnect and surrounding on-board
components.
Place the Main Board on the anti-static mat or in a clean and
ESD safe area to avoid electrical damage to the electronics.
Replace the Thermal Pad (19) whenever the Main Board is
removed.
Front Kit Flex Connector
Keypad Flex Connector
To Next Page
