8.4.5 Remove Top Bezel (20)

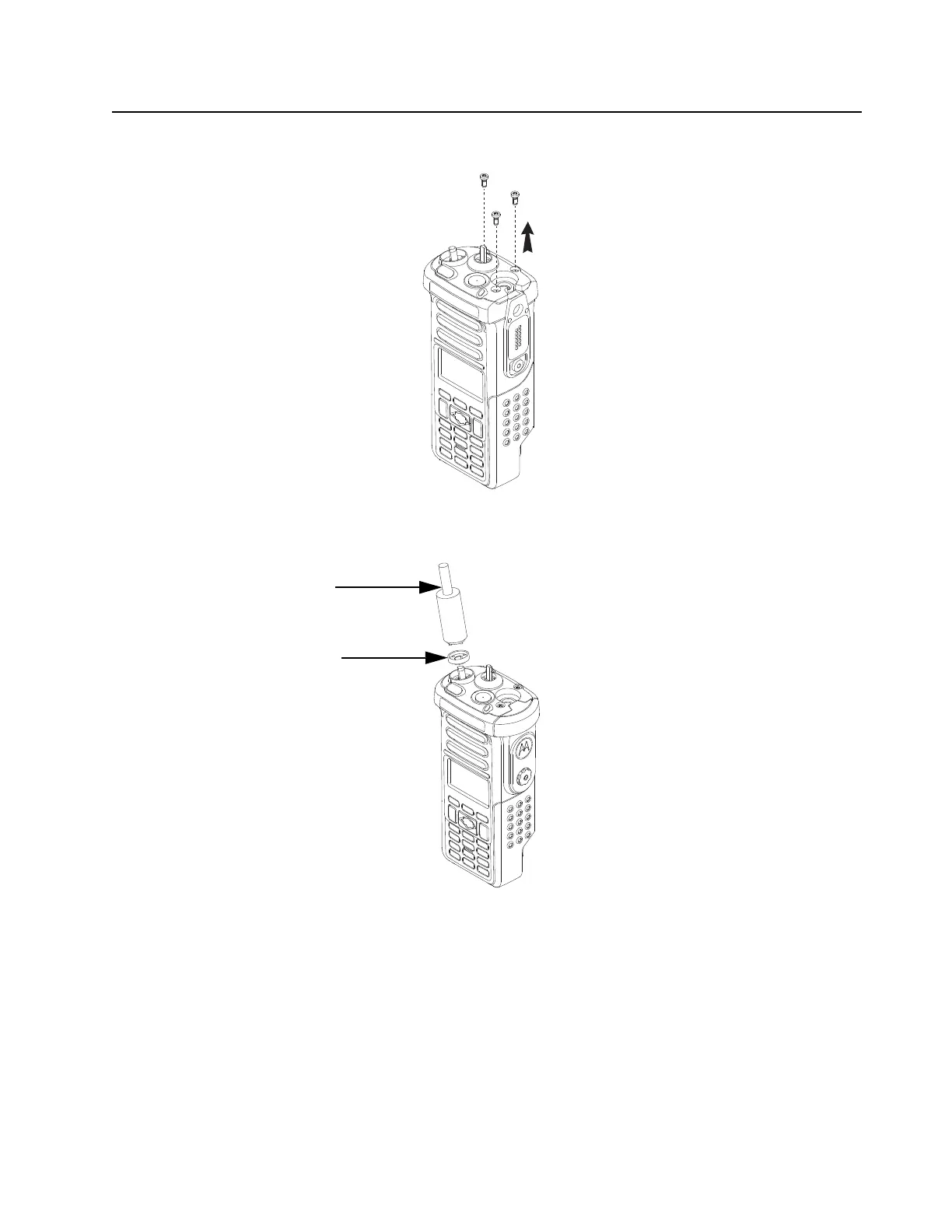

Figure 8-8. Unscrew the screws
Figure 8-9. Removing the Volume Switch Spanner Nut
1. Unscrew the three screws with Torx IP8 Bit.
2. Remove the Volume Switch Spanner Nut using the Volume Switch Spanner Nut opener
(P/N: TL000063A01).
1
2
3
Volume Switch
Spanner Nut
opener
Volume Switch
Spanner Nut
