English
m
ASTRO
®
APX™ 7000/APX 7000L
Series
Digital Portable Radios
Quick Reference Card
RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using
the radio, read the RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios which contains important
operating instructions for safe usage and RF energy awareness
and control for Compliance with applicable standards and
Regulations.

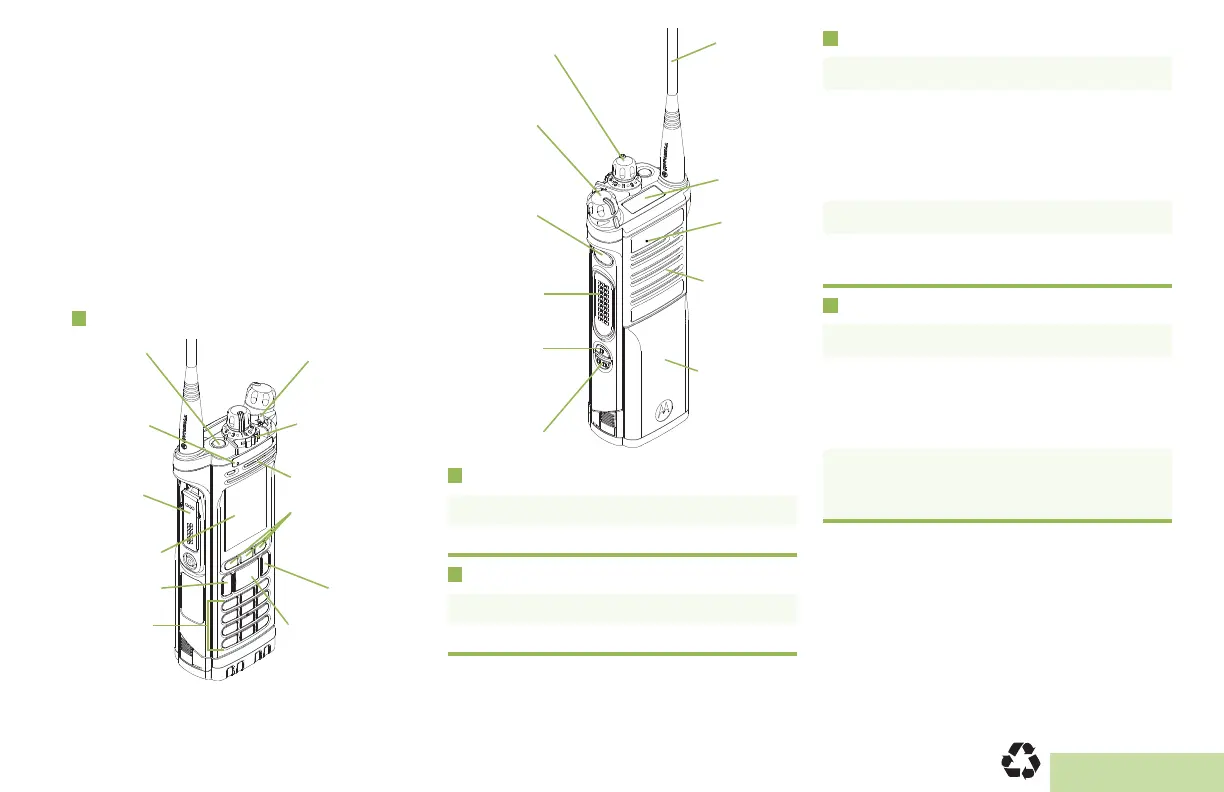

Radio Controls
Radio On/Off
Z
ones and Channels
Receiving and Transmitting
Sending an Emergency Alarm
* D
efault emergency button press timer is set
to 1 second. This timer is programmable, see
page 68 in the user guide for details.
To exit emergency at any time, press and hold
the Emergency button.
Secondary Speaker
Top (Orange)
Button
__________
2-Position
Concentric Switch
__________
Main Display
Keypad
Menu Select
Buttons
3-Position A/B/C
Switch
__________
4-Way Navigation
Button
Accessory
Connector
Home Button
Microphone
Data Feature
Button
• On – On/Off/Volume knob clockwise.
• Off – On/Off/Volume knob counterclockwise.
• Zone – Zone switch to desired zone.
• Channel – Channel switch to desired channel.
Battery
Side Button 1
__________
Side Button 2
__________
PTT Button
On/Off/Volume
Control Knob
16-Position
Select Knob
__________
Top Side (Select)
Button
__________
Main
Speaker
Top
Display
Antenna
Bluetooth
Pairing
Indicator
1 Select zone/channel.
2 Listen for a transmission.
OR
Press and hold Volume Set button.
OR
Press Monitor button and listen for activity.
3 Adjust volume, if necessary.
4 Press the PTT button to transmit; release to
receive.
1 Press and hold the Emergency button*.
2 The display shows Emergency and the
current zone/channel. Radio sounds a short,
medium-pitched tone, and the LED blinks red
momentarily.
3 When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
*68007024034*
68007024034-G
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license.
All other trademarks are the property of their respective owners. © 2009–2014 by Motorola Solutions, Inc. All Rights Reserved. 05/14
1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.
APX_7000_Dual_Display.book Page 1 Thursday, June 19, 2014 10:38 PM
