7-130 Schematics, Component Location Diagrams and Parts Lists: Power Amplifier Section
September 5, 2008 6881076C25-E

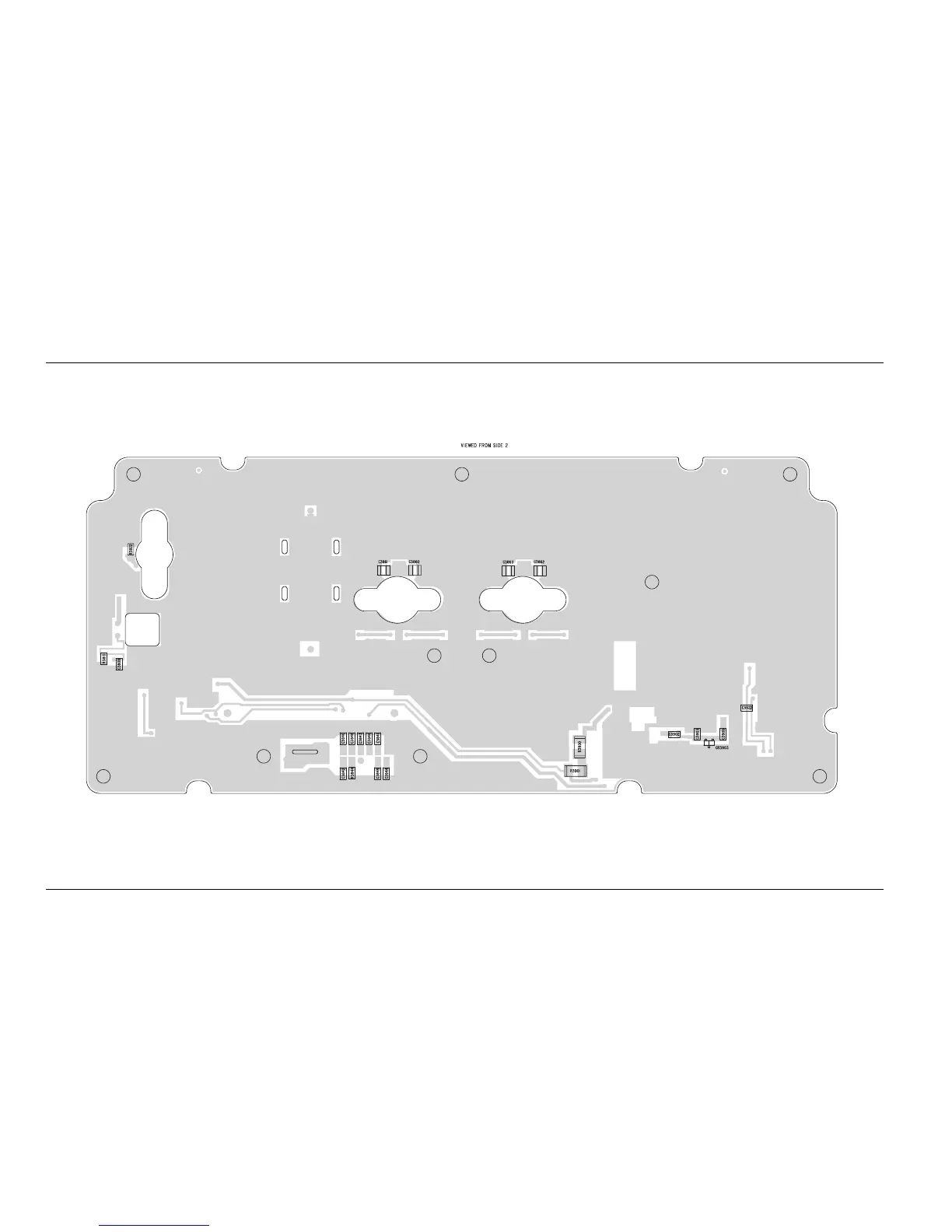

HLD6064C VHF Range 1 and HLD6063D Range 2 100-Watt PA Component Location Diagram, Side 2
