September 5, 2008 6881076C25-E

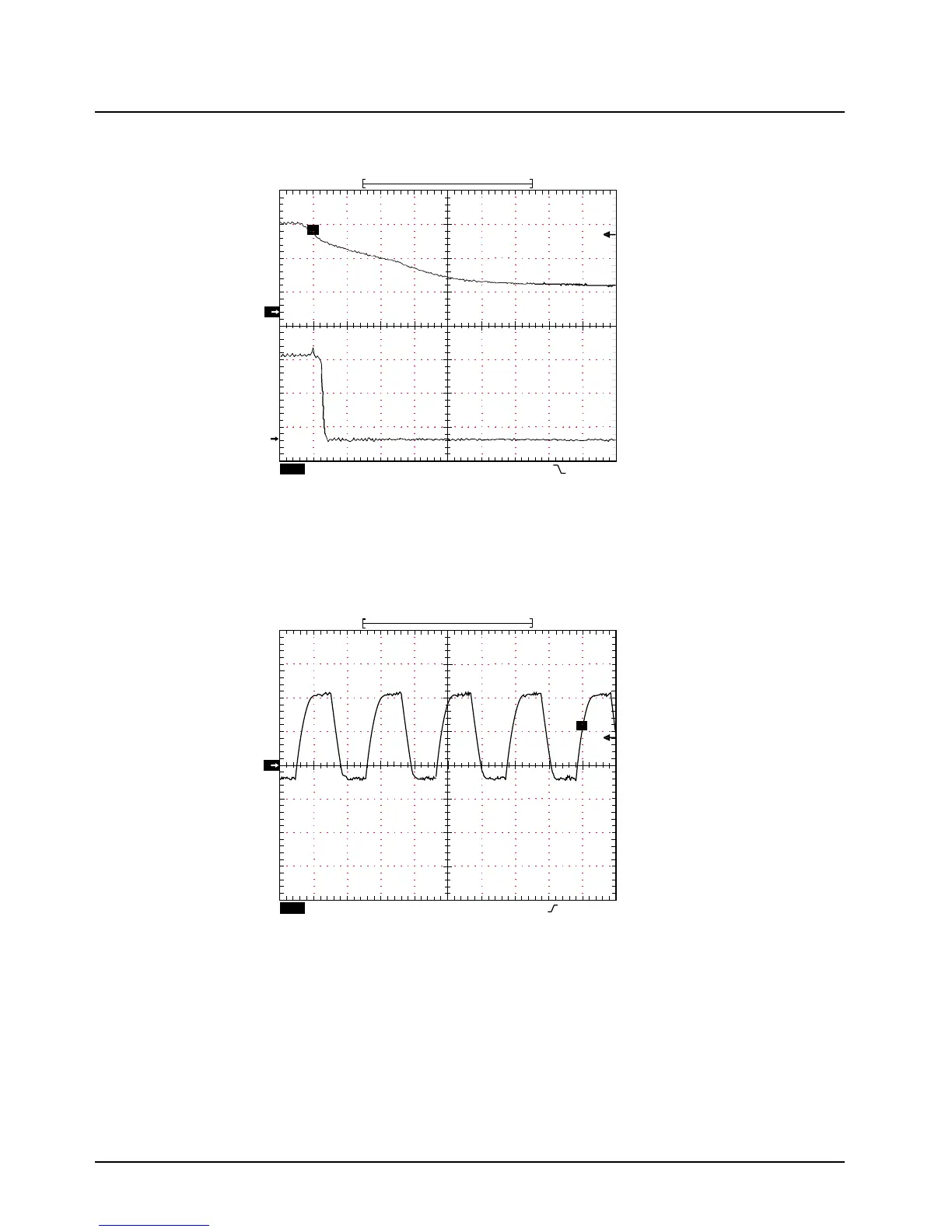

6-6 Troubleshooting Waveforms: ASTRO Digital Spectra Waveforms
Waveform W9: Power-Down Reset
Waveform W10: ADSIC 2.4 MHz Reference
1 Acquisitions
Tek stopped:
T
1
Ch1
T
2
M1.00ms Ch1 4.52 V
W9: Power Down Reset.
Trace 1 - +5V @ U407 (VDD)
Trace 2 - Reset @ U407 (OUT)
2.00V Ch2
MAEPF-24384-O
2.00V
T
493 Acquisitions
Tek stopped:
MAEPF-24385-O
T
1
Ch1
T
M 200ns Ch1 1.64 V
W10 ADSIC 2.4 MHz Reference
Trace 1 - IDC @ U406
Ch1 Freq
2.4038MHz
2.00V
