Motorola ASTRO Digital Spectra - HRE6001 B;C,6002 C,6003 B;C,6004 B;C,6011 B;C,6012 B,6014 B UHF Receiver Front-End Hybrid Component Location Diagram

7-118 Schematics, Component Location Diagrams and Parts Lists: RX Front-End Section
September 5, 2008 6881076C25-E

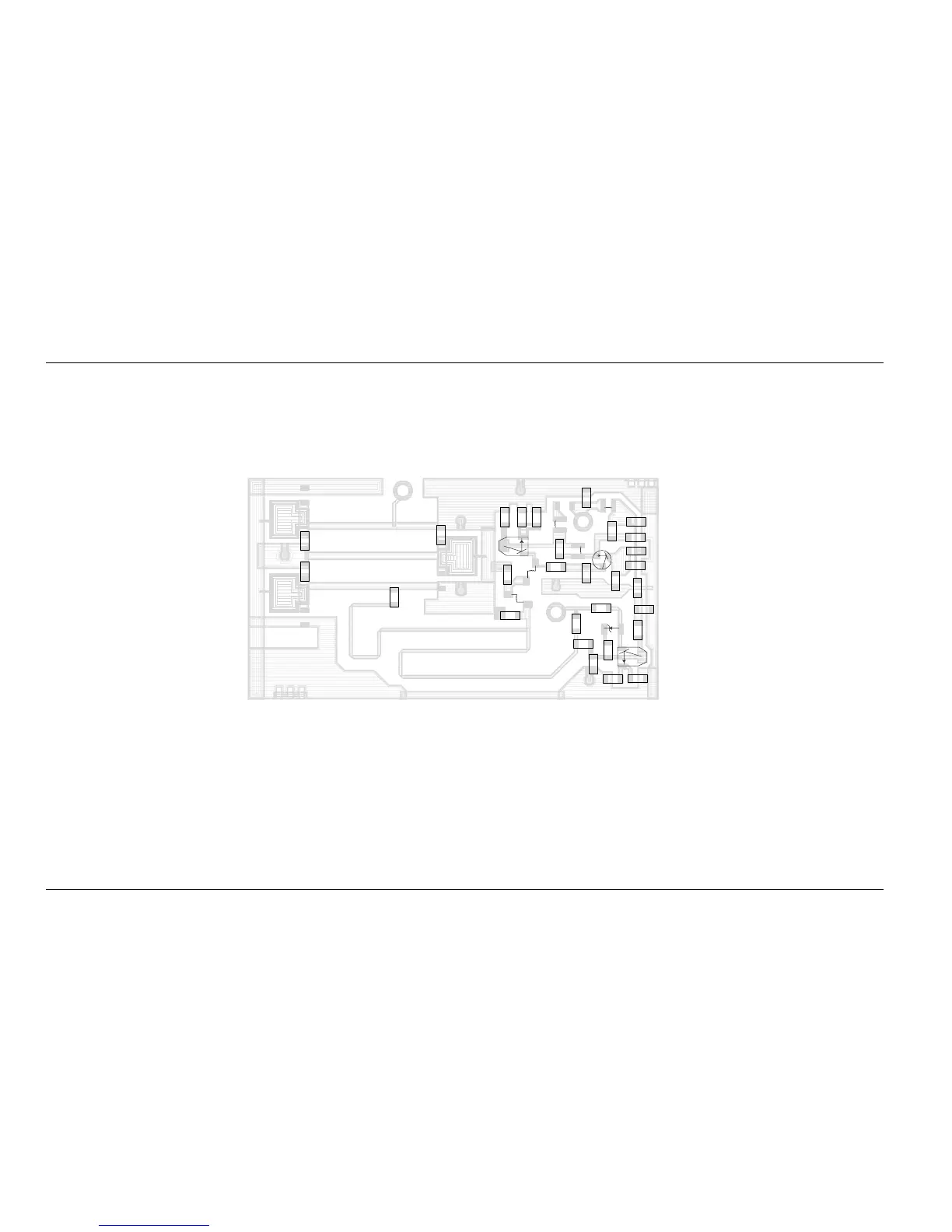

HRE6001B/C,6002C,6003B/C,6004B/C,6011B/C,6012B,6014B UHF Receiver Front-End Hybrid Component Location Diagram
C133
C138
C100
C103
R126
C127
R101
L125
C132
R104
R128
C135
C136
C134
Q125
C130
R127
R132
R131
R130
R129
C128 C129
Q126
Q100
C133
C126
C125
CR100
R102
C101
R100
R103
C102
L129
L126
L128
L127
