Motorola ASTRO Digital Spectra - RX Front-End Section; HRD6001 E;6002 E;6011 E;6012 E VHF Receiver Front-End Schematic

Schematics, Component Location Diagrams and Parts Lists: RX Front-End Section 7-109
6881076C25-E September 5, 2008
7.5 RX Front-End Section

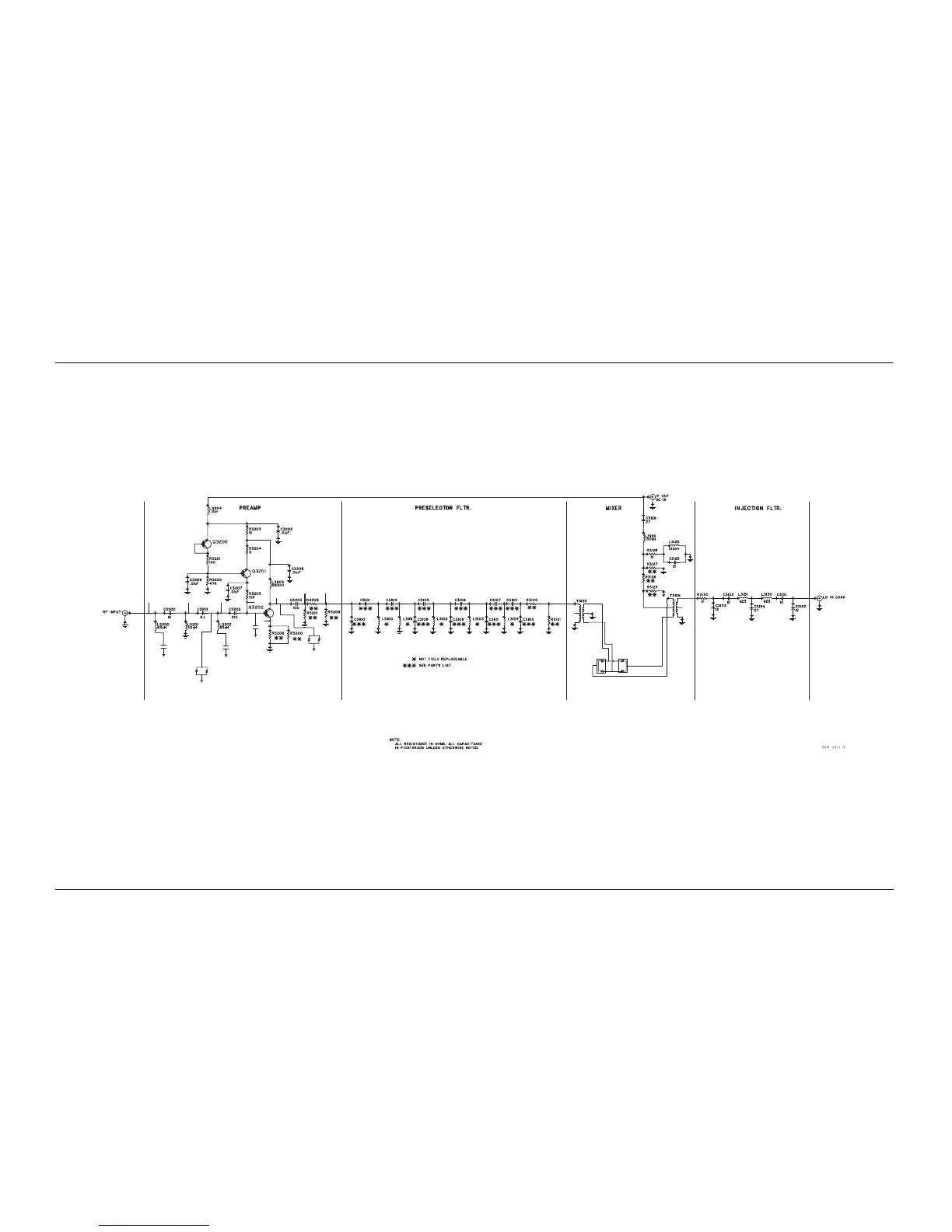

HRD6001E/6002E/6011E/6012E VHF Receiver Front-End Schematic
C3209
C3210
CR3200
CR3201
C3211
TP1
TP2
TP3
TP4
TP6
TP5
TP7
TP8
CR3126
CR3127
