RADIO OVERVIEW

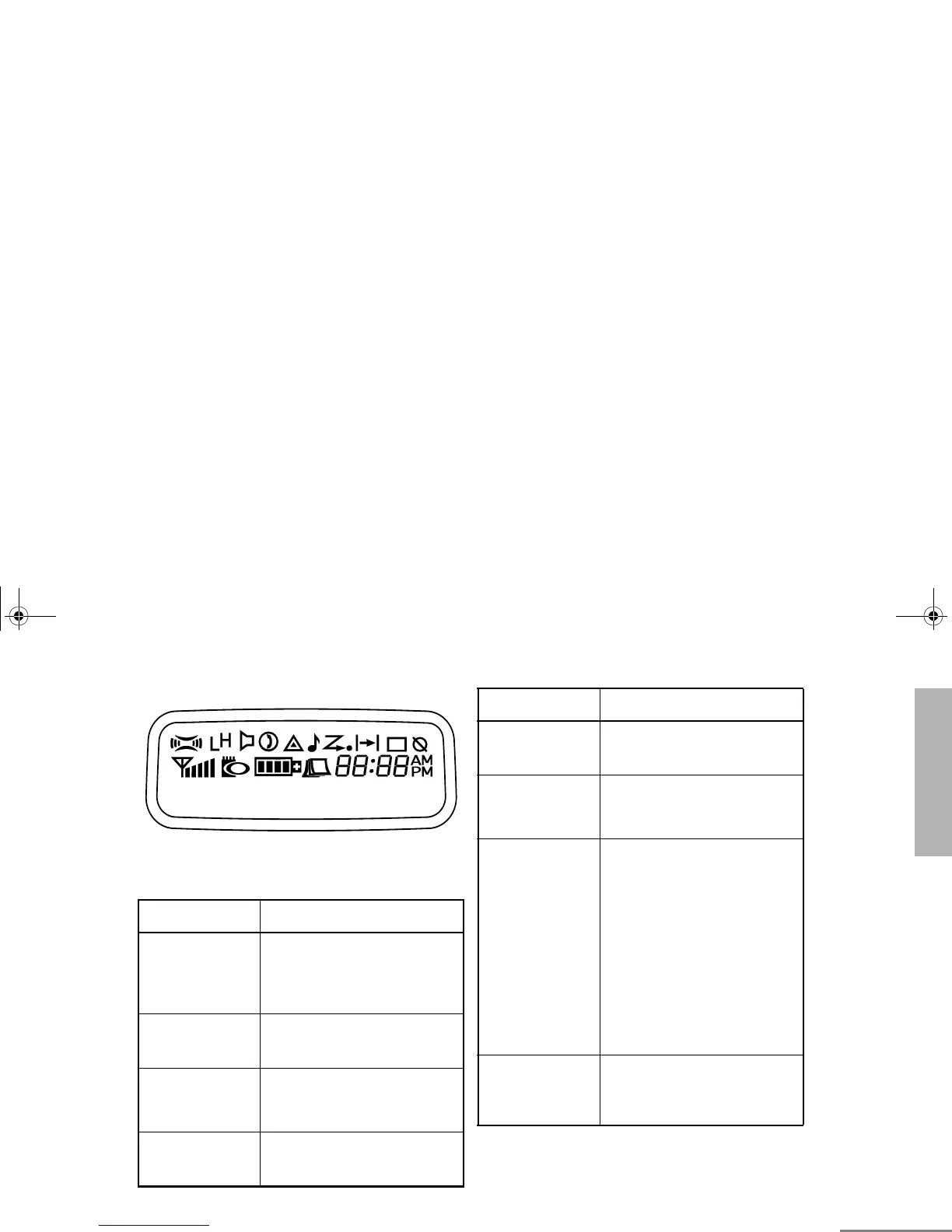

LCD Screen
The top two screen rows display menu and
radio status information:
Symbol Indication
A
Companding
The Companding feature is
activated. When in narrow
band, this feature improves
audio quality.
B
Power Level
Low Power “ R ” or High
Power “ S ” is activated.
C
Monitor
The selected channel is being
monitored (conventional
operation only).
D
Phone
Phone mode is selected.
Call Received
E
Emergency
An Emergency Siren is being
sounded.
F
Call Received
A Selective Call or Call Alert
has been received (trunked
operation only).
G
Scan
When the green LED is
blinking, indicates that the
System or All Group Scan
feature has been activated.
• During Scan, indicates
activity on a non-priority
talkgroup or channel.
When the green LED is off,
indicates that non-prioritized
Auto Group Scan has been
activated.
H
•Priority 1 Scan
( blinking)
Indicates activity on a Priority
1 talkgroup or channel during
System Scan.
Symbol Indication
•
