Section 2
THEORY OF OPERATION
1.0 Introduction
This Chapter provides a detailed theory of operation for the UHF circuits in the radio. For details of
the theory of operation and troubleshooting for the the associated Controller circuits refer to the
Controller Section of this manual.
2.0 UHF (403-470 MHz) Receiver
2.1 Receiver Front-End
The receiver is able to cover the UHF range from 403 to 470 MHz. It consists of four major blocks:
front-end bandpass filters and pre-amplifier, first mixer, high-IF, low-IF and receiver back-end . Two
varactor-tuned bandpass filters perform antenna signal pre-selection. A cross over quad diode
mixer converts the signal to the first IF of 44.85 MHz. Low-side first injection is used.

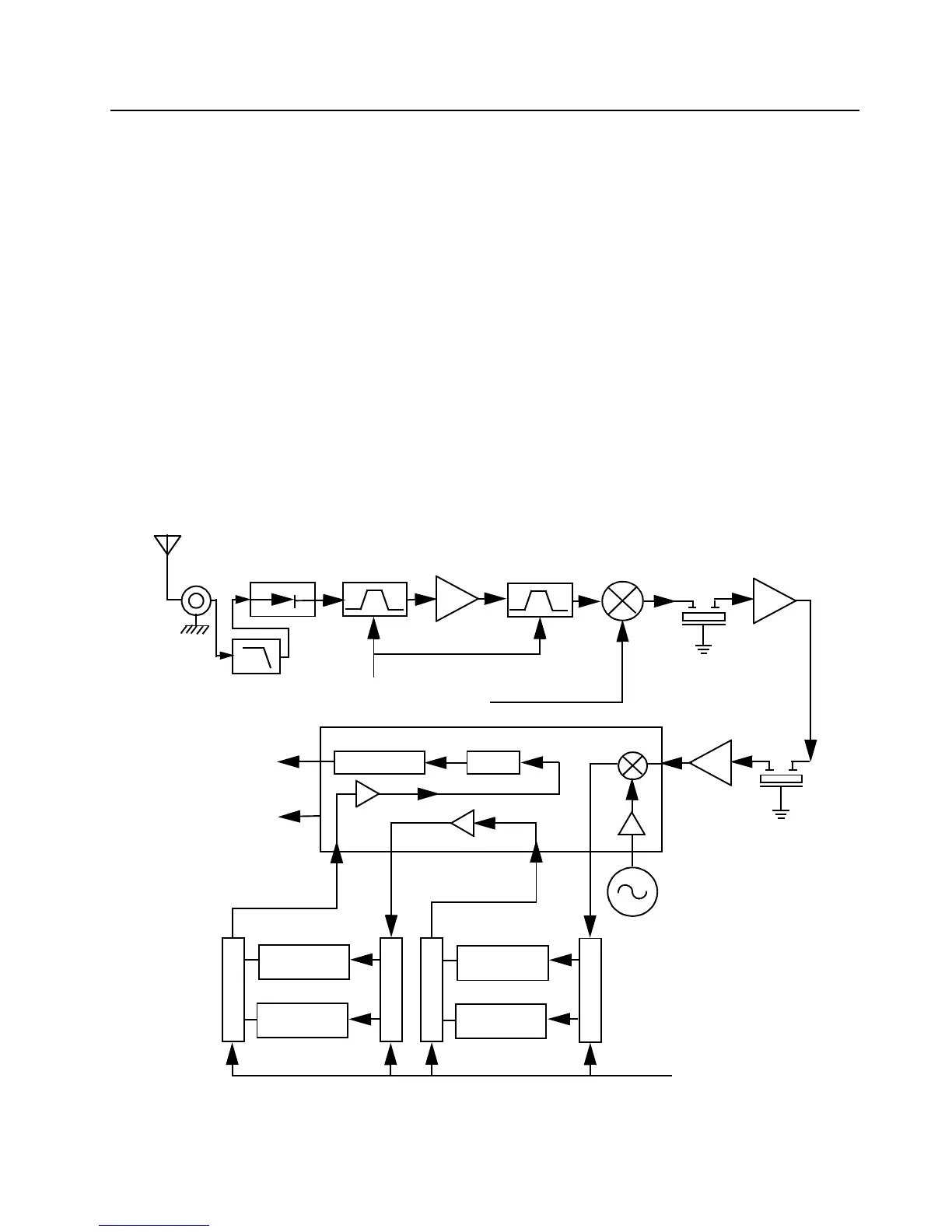

Figure 2-1 UHF Receiver Block Diagram
