Motorola LS4208 - Inserting and Removing the Interface Cable

Quick Reference Guide 3
Introduction
The LS4208 scanner combines excellent scanning performance and advanced
ergonomics to provide the best value in a lightweight laser scanner. Whether used as a
hand-held scanner or in hands-free mode in a stand, the scanner ensures comfort and
ease of use for extended periods of time. Before programming the scanner, scan the
appropriate bar code(s), beginning on page 7, to communicate with the host.

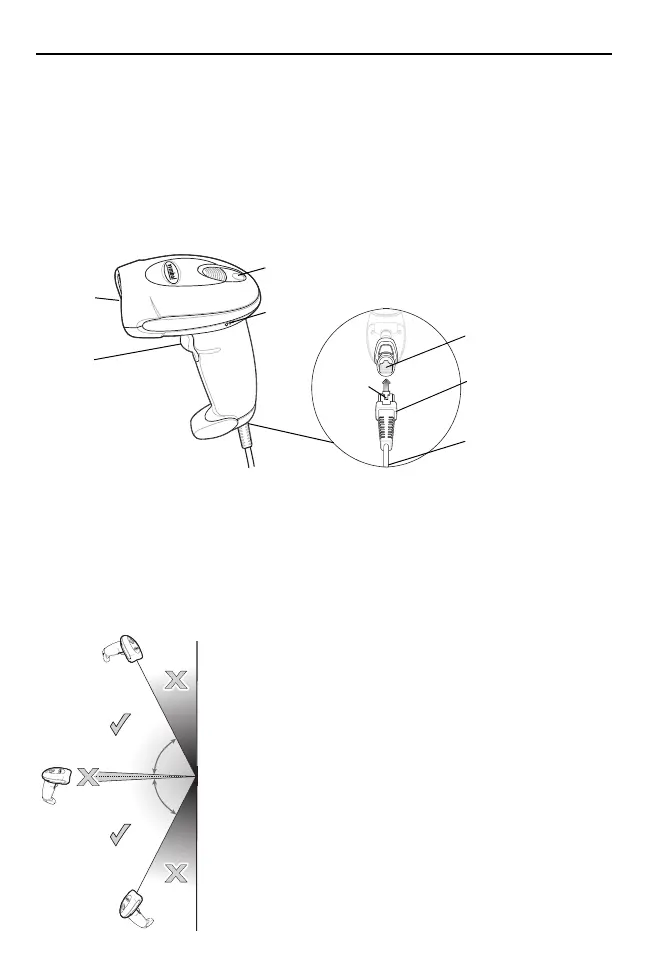

Parts
Inserting and Removing the Interface Cable
To connect the interface cable, insert the interface cable’s modular connector into the
cable interface port.
To remove the interface cable, unplug the installed cable’s modular connector by
depressing the connector clip with the tip of a screwdriver.
Aiming
Interface cable
modular connector
To host
Beeper
LED
Trigger
Scan
Window
Cable interface
port
Connector
clip
65
o
65
o
