The “Labels” Program
Adding and/or Editing Label Text
MC3000 Digital Deskset Operator and Installation Manual A-7
(6880309L15-A)
Select and edit the field(s) you wish to modify. The eight button module dialog box has
default labels that you need to change for the Digital Deskset. .
3. Click the Clear button to clear the defaults in all fields. For the Digital Deskset, the top
five buttons should be blank and the bottom three should be Supervisor or Takeover,
Speaker and Intercom.
The “Label Name” field allows you to add or modify the name of the module’s label. The
label name will be printed with the labels.
4. Press the OK button. The “Labels” screen appears. The screen will display a print pre-
view of the module label.

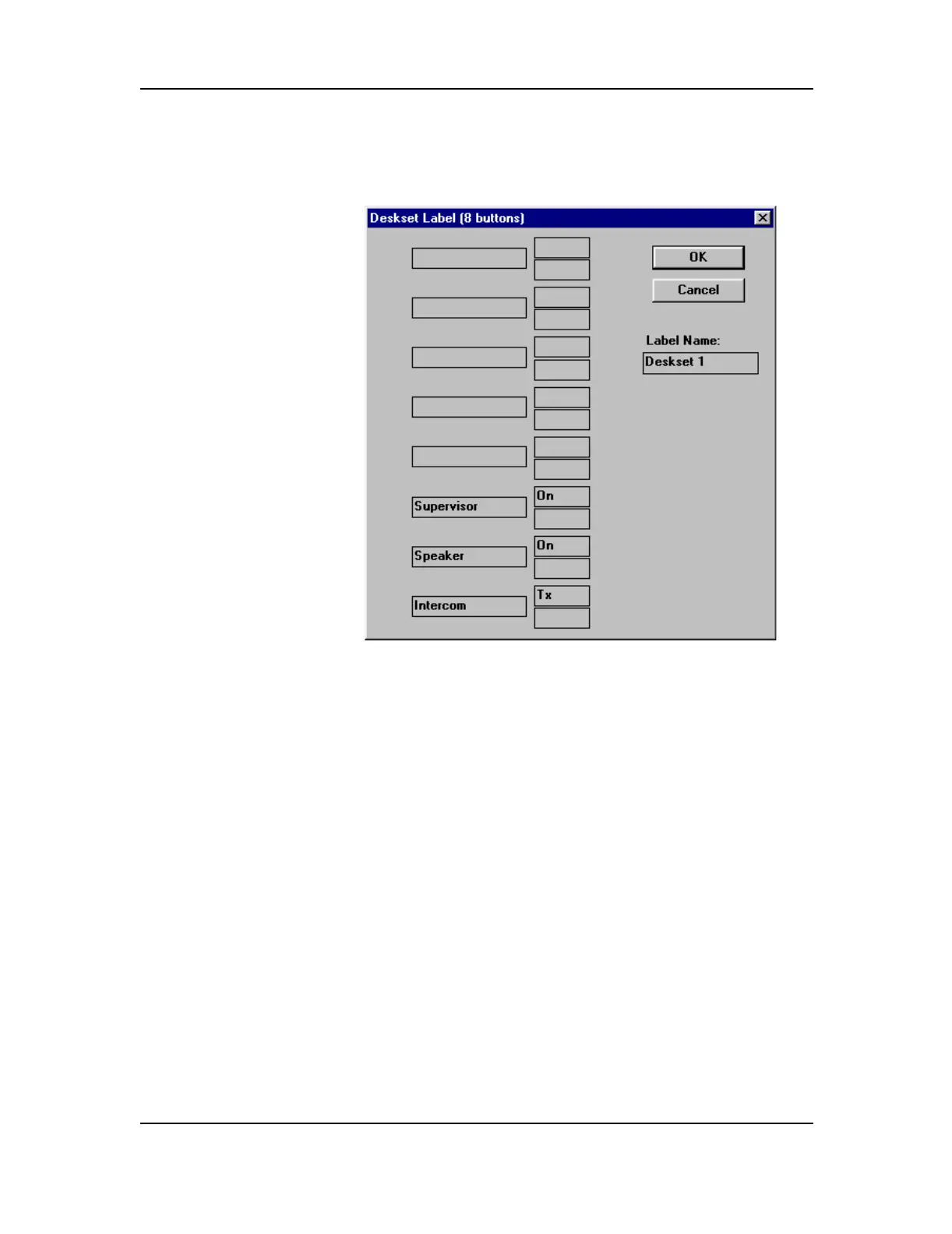

Figure A-7: Default Deskset Label (8 buttons) Dialog Box
