Disassembly/Reassembly Procedures Radio Disassembly – Detailed 5-7
4. Remove the channel selector knob and volume knob off from their shafts using the knob
removal tool.

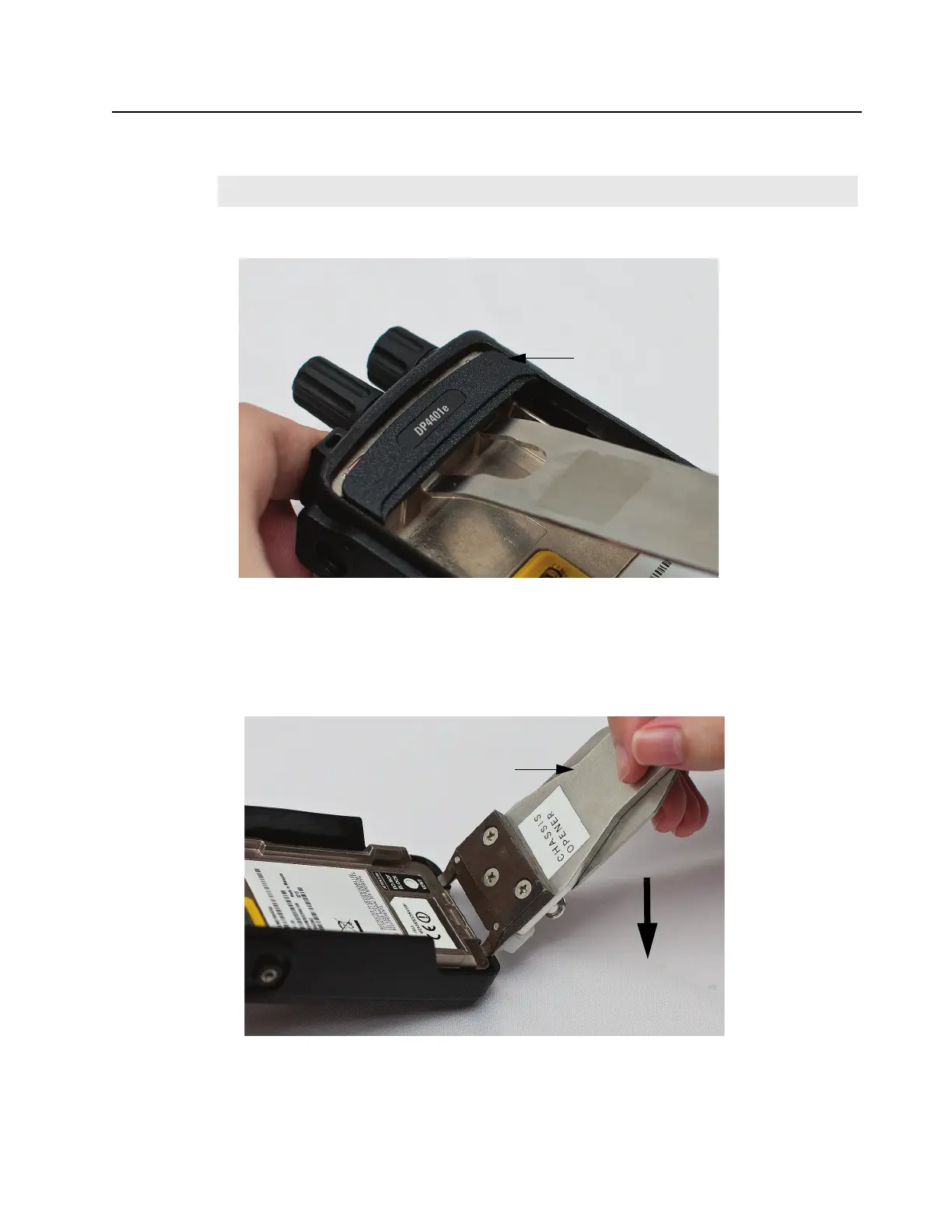

5. Hook the knob opener under the shroud as shown in Figure 5-3 and detach it with a
downward motion.
Figure 5-3. Shroud removal
6. Separate the chassis from the housing assembly as follows:
a. Insert the chassis opener into the recess at the bottom of the radio. Apply a downward
force to separate the chassis from the front housing.
b. Remove the chassis from the front housing.
Figure 5-4. Chassis removal
NOTE
Both knobs slide on and off. However, they are supposed to fit very tightly on their shafts.
