Motorola MSAT-G2 - Cable Connections and Wiring; Power Cable Specifications

Power Cable

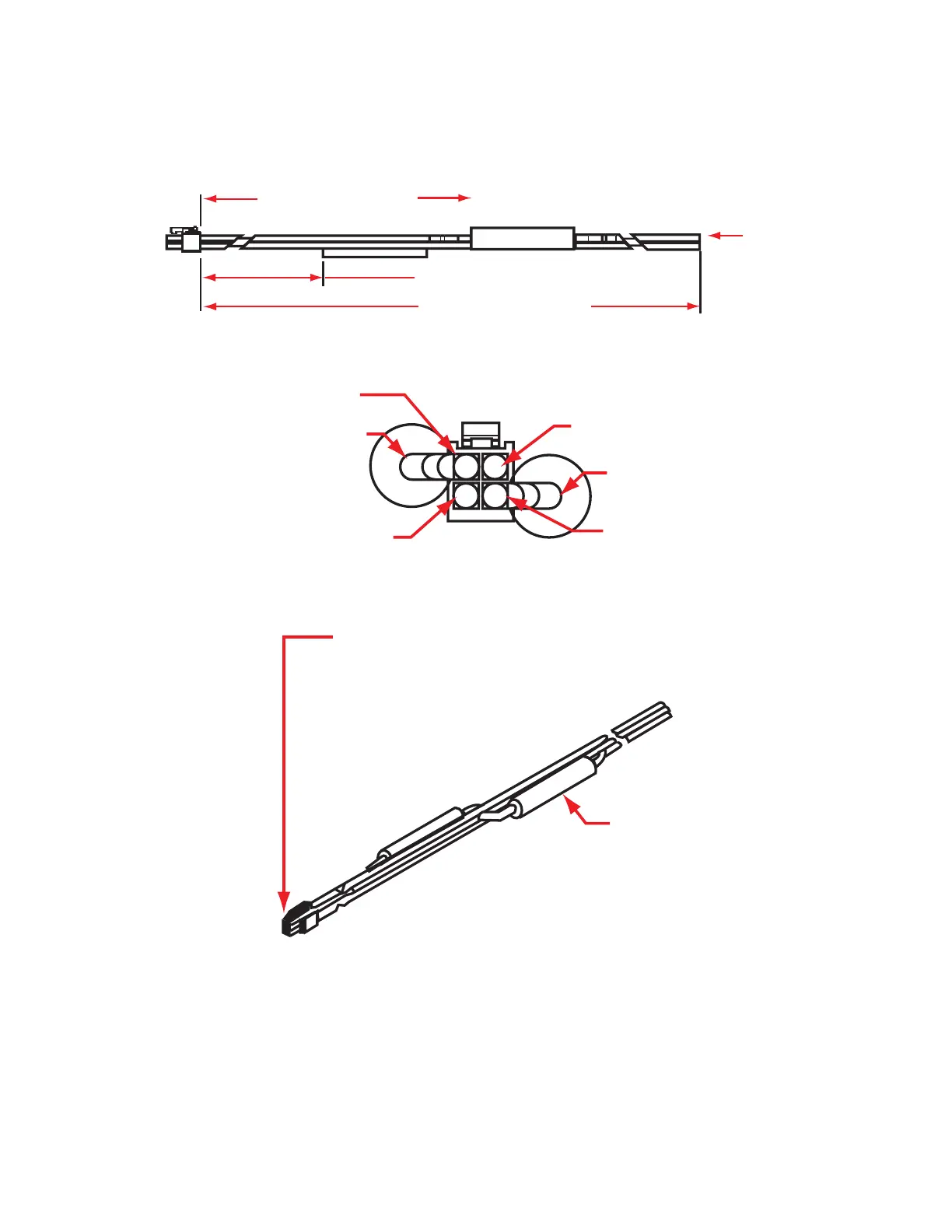

Figure 11 – Power Cable Details
MSAT-G2 Installation Guide 8
0.25 A, 1-1/4 BY 1/4 FUSE
10 + / - 0 . 5 INCHES
20 FEET + / - 4 INCHES
6 + / - 0 . 5 INCHES
VIEW A
HORN ALERT
AWG 20, STRANDED, BLUE
IGNITION SENSE
AWG 20, STRANDED, ORANGE
VIEW A
GND
AWG 16, STRANDED, BLACK
5 A, 1 1/4 BY 1/4 FUSE
12 V
AWG 16, STRANDED, RED
IN LINE FUSE HOLDER
HOUSING : MOLEX PART NO. 39-01-2045
TERMINAL:
MOLEX PART NO. 44476-3111 (FOR AWG IG WIRE)
AND 44476-1111 (FOR 20 WIRE)
