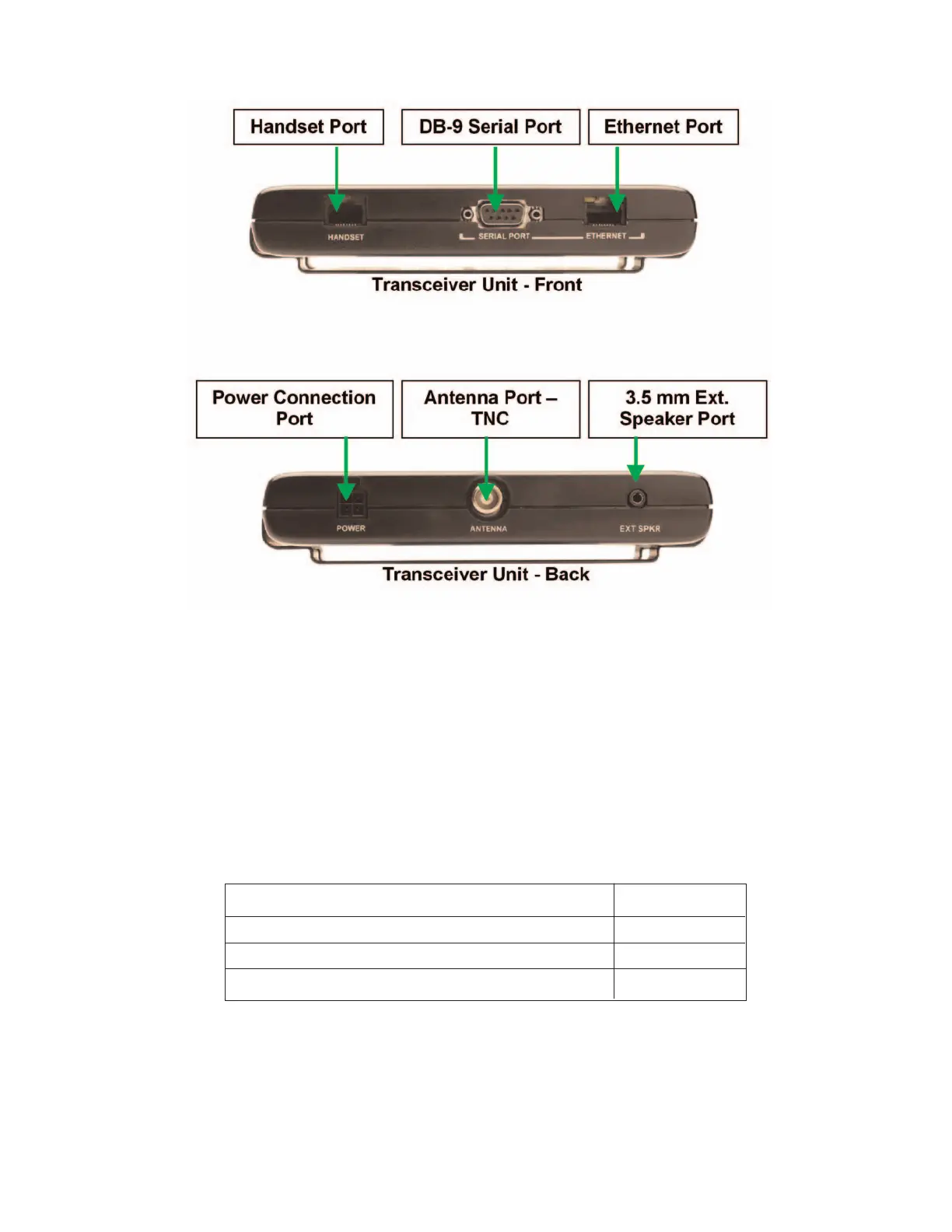

Figure 9 – Transceiver Unit Front & Back
System Power Requirements
There is only one power connection for the entire radio. This must be connected to a
12 VDC power supply.
Power requirements and consumption are as follows:
Figure 10 – System Power Requirements
MSAT-G2 Installation Guide 7
Voltage Input Minimum 11.5 V DC
Voltage Input Maximum 15.6 V DC
Total Current for AU,TU & Handset (Max.) 3A
Required Fuse 5A
