Serial Port
The serial port is a female DB-9F RS 232 and can be used for NMEA output (GPS) and
crossbanding.

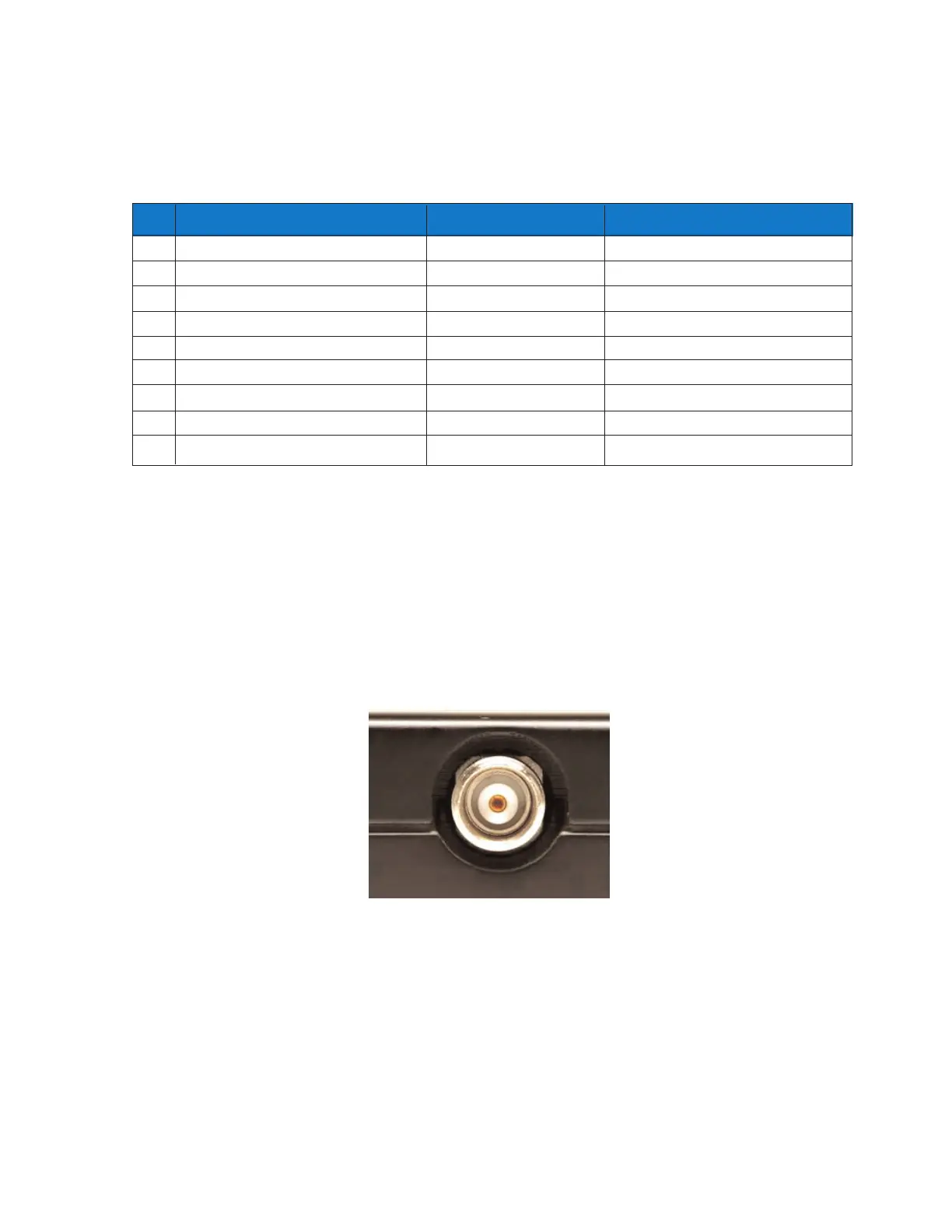

Figure 6 – Serial Port Pinout
Antenna Port
The antenna port is a 50 Ohm female TNC. This line carries RF, signaling, and DC power for
the antenna. Note: Grounding the center conductor while power is applied to the transceiver
can cause the transceiver's fuse and/or a fuse in the vehicle to blow. No modifications should
be made to the RF cable under any circumstance
Figure 7 – Antenna Port Detail
MSAT-G2 Installation Guide 5
Pin Data
(currently not supported)
GPS Crossband
1 CD (Carrier Detect) COR (Carrier Operated Relay)
2 RD (Receive Data) RD (Receive Data)
3 TD (Transmit Data)
4 DTR (Data Terminal Ready)
5 GND (Signal Ground) GND (Signal Ground) GND (Signal Ground)
6 DSR (Data Set Ready)
7 RTS( Request To Send) PTT (Push To Talk)
8 CTS (Clear To Send) CTT (Clear To Transmit)
9 RI (Ring Indicator)
