18 VC70 Vehicle Computer
6. Connect the USB connector of the adapter cable into one of the VC70
USB connectors and carefully tighten the thumbscrews.
Installing a Numeric Keyboard
The Numeric keyboard is installed using the following items:
• numeric keyboard mount with all required screws for attaching the
keyboard to the mount and the mount to the vehicle computer
1. Attach the numeric keyboard to the mount, using six M4x10mm Torx
head screws with captive washers.
2. Torque the numeric keyboard Torx head screws to 8 + 10% kgf-cm (7
+ 10% lbs-in).
CAUTION Do not use tools to secure connector thumbscrews. Only
tighten thumbscrews by hand.
NOTE The Numeric Keyboard can be installed on both sides of
the Numeric Keyboard Mount.

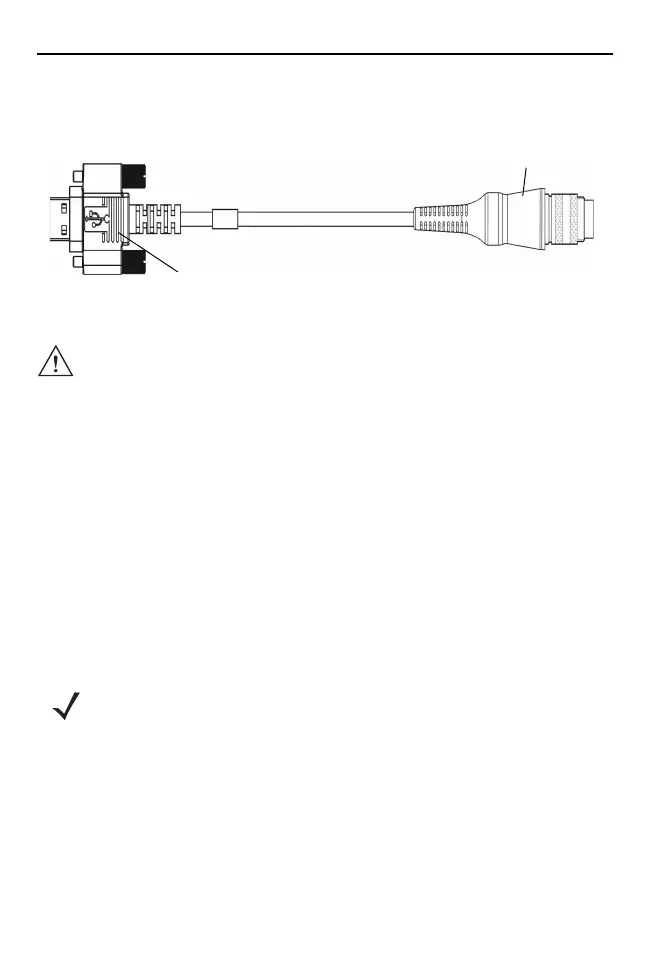

Connect the VC5090 Keyboard Cable here
Connect to a VC70 USB Connector
VC5090 Adapter Cable
To Next Page
