Chapter 4
Status Indicators
This chapter explains the Icons, battery capacity information, LED indicators, and tones used in the
radio.
4.1
Icons
The following table shows icons which appear on your radio display, and their description.

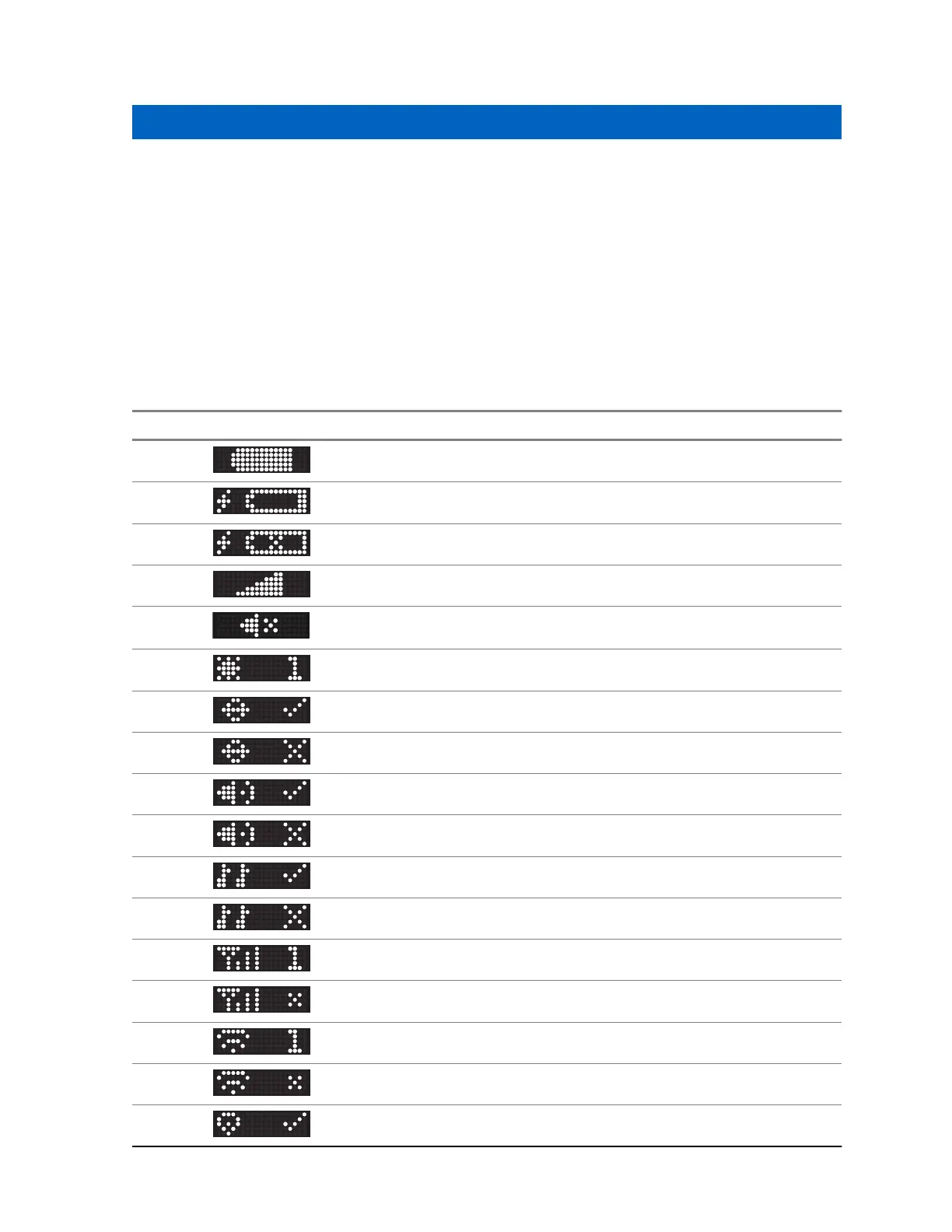

Table 3: Display Icons
Icon Description
Battery Level
Battery Charging
Battery Charging Error
Volume Level
Mute Mode
Brightness Level
Do Not Disturb On
Do Not Disturb Off
Voice Announcement On
Voice Announcement Off
Alert Tones On
Alert Tones Off
Cellular Signal Level
Cellular Connection Failed/No SIM/Invalid SIM
Wi-Fi Signal Level
Wi-Fi Connection Failed
Location On
