motortronics VMX Series User Manual

Basic Installation and Operation Guide
VMX Series Digital Solid State Soft Starters 18 – 1250A
VMX Quick Setup Guide 6 | P a g e

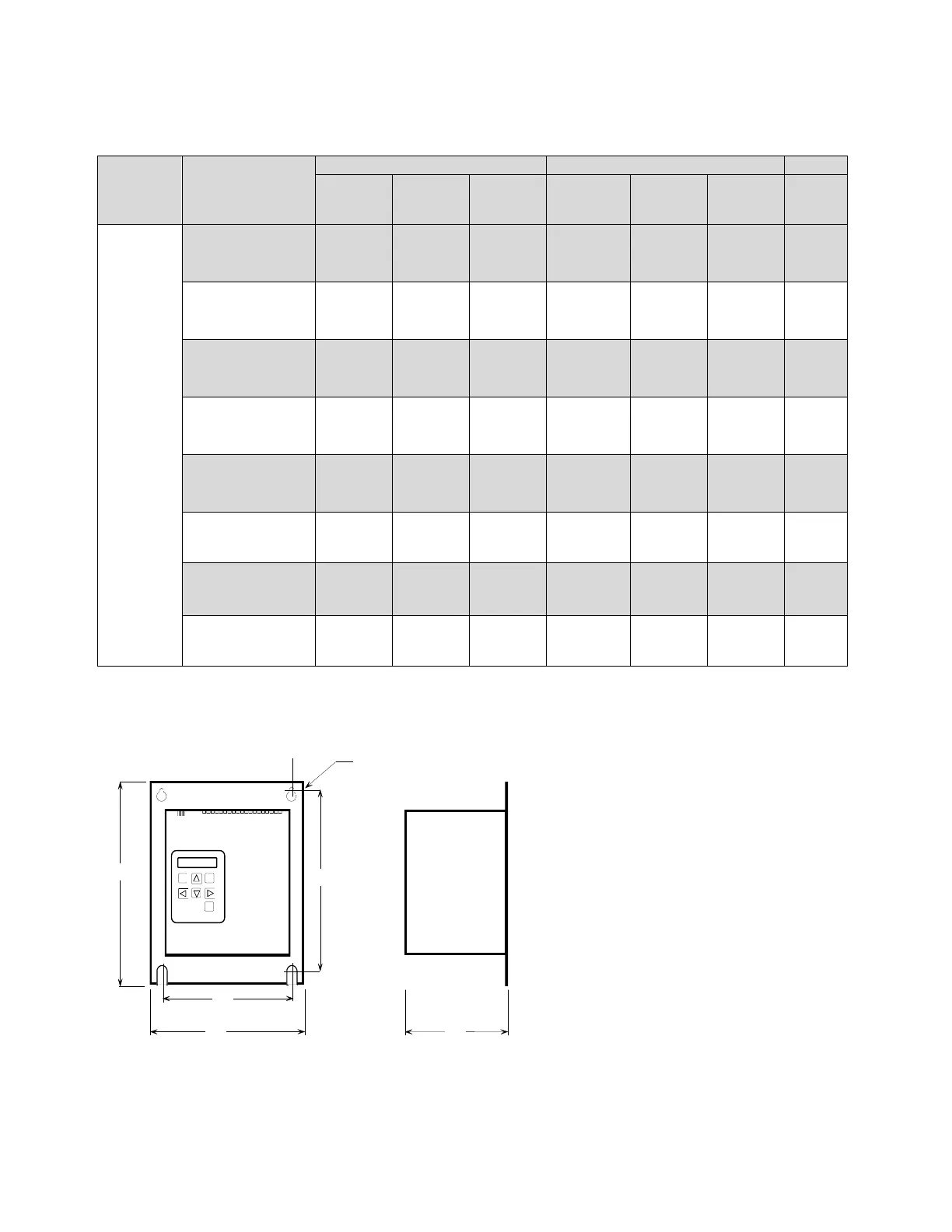

Dimensions and Weights
Table 2: VMX Dimensions (subject to change)
Figure 1: VMX Dimensions
Enclosure
Model Number
Overall
Mounting
A Inches
(mm)
B Inches
(mm)
C Inches
(mm)
D Inches
(mm)
E Inches
(mm)
F Inches
(mm)
Weight
lbs
(kg)
Panel
(open) with
integral
bypass
contactor
VMX-18-BP through
VMX-48-BP
9.06
(230)
8.00
(203)
6.68
(169.7)
8.06
(204.7)
7.00
(177.8)
0.22
(5.6)
13
(5.9)
VMX-62-BP through
VMX-112-BP
14.00
(355.6)
8.00
(203)
6.68
(169.7)
13.25
(336.6)
6.75
(171.5)
0.28
(7.1)
23
(10.4)
VMX-150-BP and
VMX-160-BP
19.21
(487.9)
8.00
(203)
6.68
(169.7)
18.25
(463.6)
6.75
(171.5)
0.28
(7.1)
35
(15.9)
VMX -210-BP and
VMX-275-BP
28.50
(723.9)
12.5
(317.5)
9.03
(229.4)
27.38
(695.5)
10.75
(273.1)
0.40
(10.2)
90
(40.9)
VMX-361-BP and
VMX-450-BP
29.29
(744)
12.5
(317.5)
9.03
(229.4)
27.38
(695.5)
10.75
(273.1)
0.40
(10.2)
105
(47.7)
VMX-550-BP
through
VMX -600-BP
30.98
(786.9)
12.5
(317.5)
9.05
(229.9)
27.38
(695.5)
10.75
(273.1)
0.40
(10.2)
120
(55)
VMX-862-BP
through
VMX-900-BP
44.25
(1124)
25.5
(647.7)
11.86
(301.3)
43.00
(1092.2)
23.00
(584.2)
0.40
(10.2)
Contact
Factory
VMX-1006-BP
through
VMX -1250-BP
46.56
(1182.6)
28.20
(718.3)
13.10
(332.7)
42.75
(1095.9)
23.24
(590.3)
0.40
(10.2)
Contact
Factory
F dia.
D
E
B
A
C
~ ~
~
