Motostar ECLISTAR - Adjusting the Endstops; Adjusting the Opening Endstop

Pag.
12
12 - Manual code:
119R7179GB
119 R7179 G B ver.
3.0
3.0 07/2009 - The data and information in this manual are subject to change at any time.

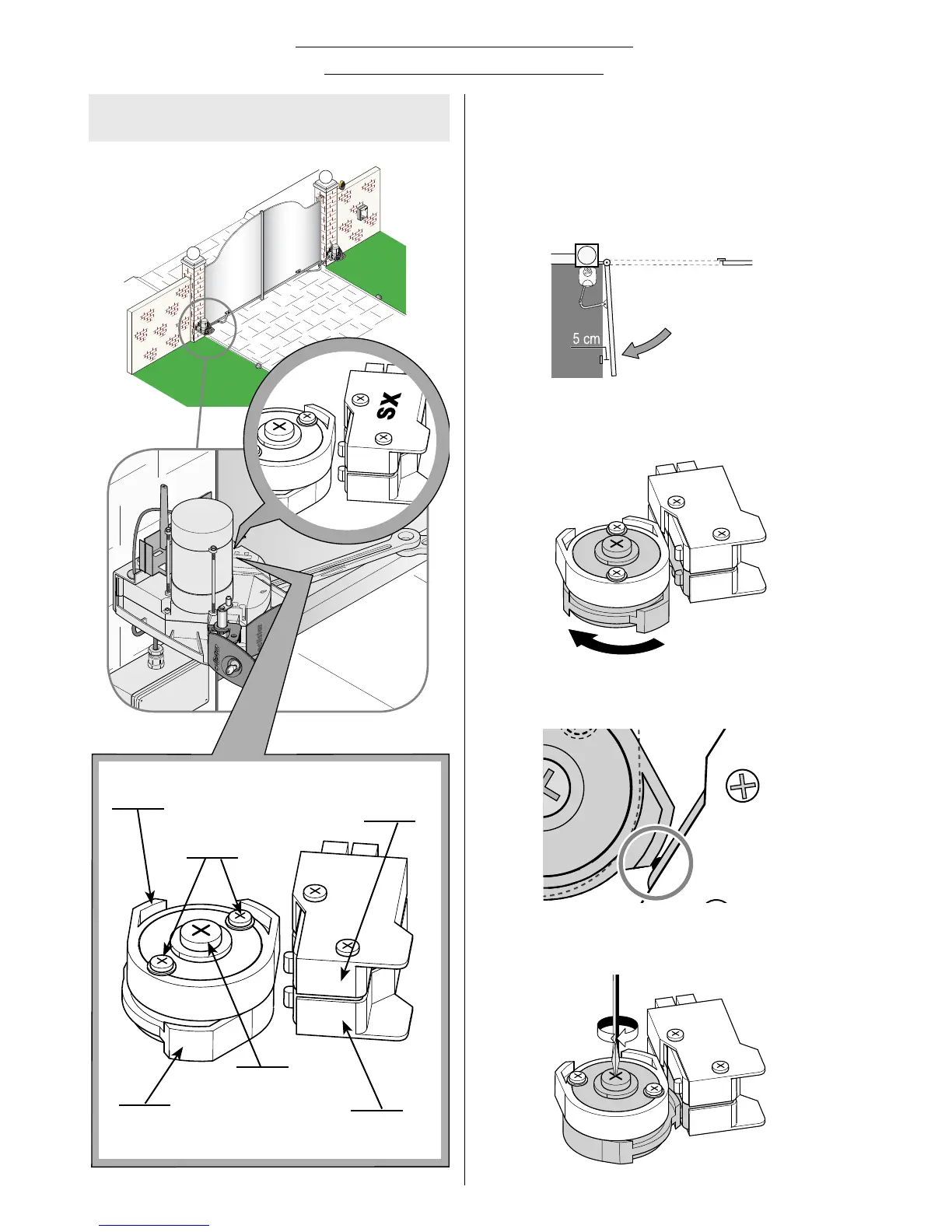

1
- With the motor released, place
the gate leaf at a distance of 5 cm
from the opening endstop.
ADJUSTING THE ENDSTOPS
LEFT HAND GEARMOTOR
- INNER VIEW -
... until the microswitch is activated.
2
- Rotate the lower cam clockwise ....
ADJUSTING THE
OPENING ENDSTOP
3
- Secure the cam using the central
screw.
Opening
microswitch
Lower
cam
Closing
microswitch
Upper
cam
Upper cam
securing screw
Lower cam
securing screw
