Motostar ECLISTAR - Components; Technical Characteristics; Dimensions

x 1
x 2
5
8
6
4
2
1
3
7






Pag.
3
-
Manual code:
119R7179GB
119 R7179 G B ver.
3.0
3.0 07/2009
- The data and information in this manual are subject to change at any time.

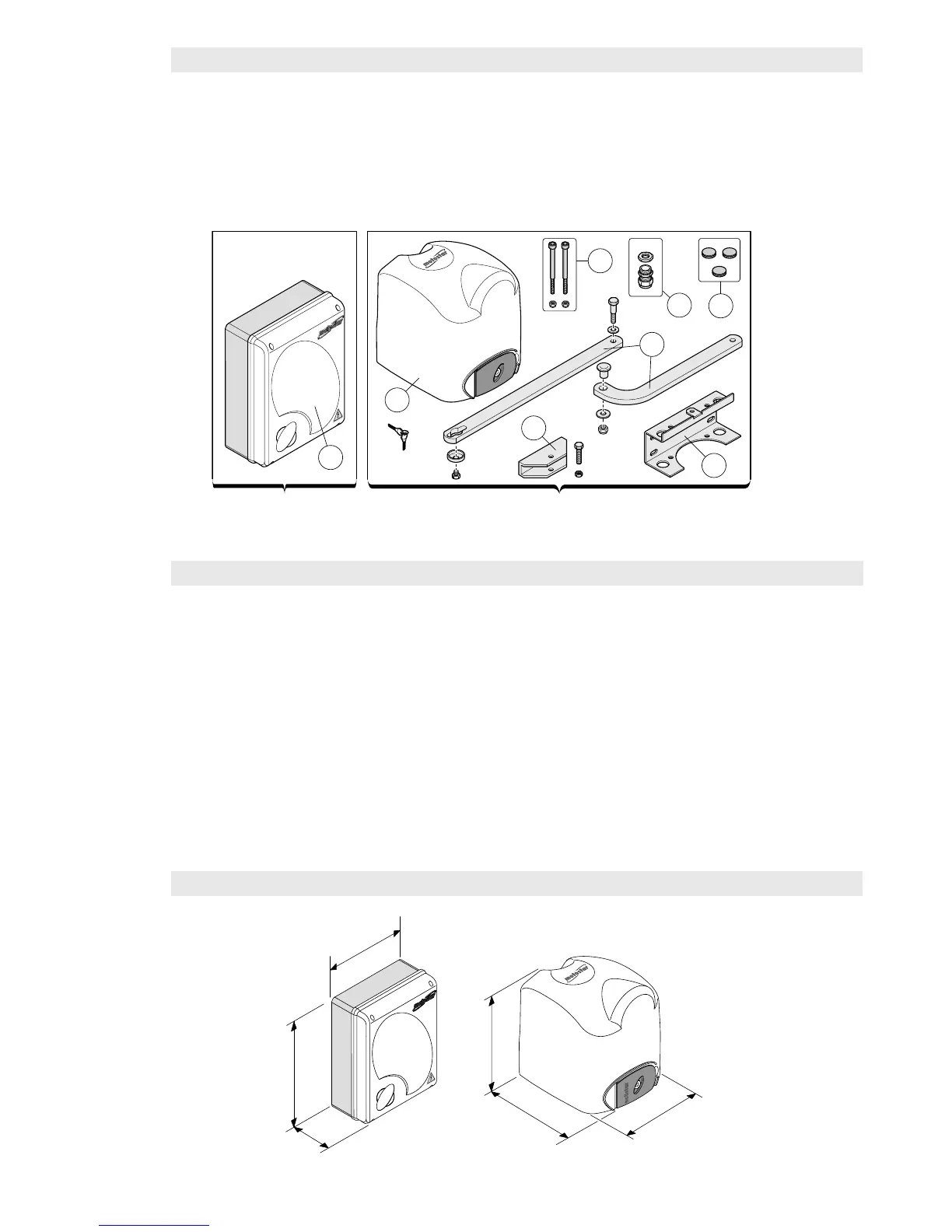

1.1 COMPONENT PARTS
1) Control panel
2) Gearmotor
3) Base bracket
4) Head brackets
5) Fixing nuts and screws
6) Transmission arms
7) Cable feedthroughs
8) Cable gland
1.2 TECHNICAL CHARACTERISTICS
24V D.C. self-locking gearmotor, powered by a 230V A.C. control panel.
1.3 DIMENSIONS
Power supply to control panel:
230V A.C. – 50/60Hz
Power supply to gearmotor:
24V D.C.
Max power: 140W
Nominal supply voltage: 5A max
Max thrust: 180N
Max frequency of use: 45 cycles/h
Duty cycle: 50%
Reduction ratio: 1/36
Operating temperature: from -20° to +
55°C
Overall weight including packaging: 30 Kg
