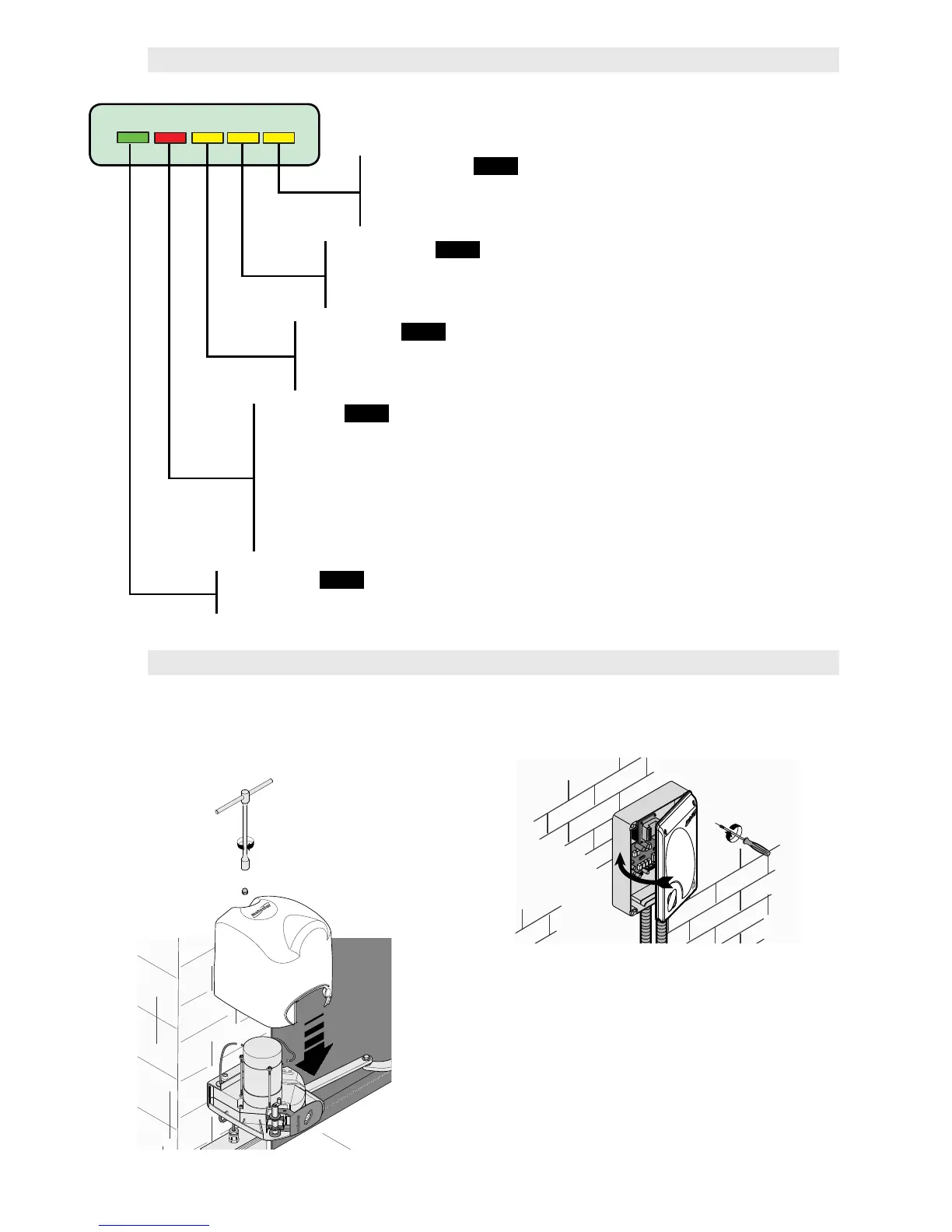

3.8 LED CONTROL FUNCTIONS
Red led
PROG
- Flashes during automatic closing;
- When fl ashing quicker, there is always a yellow D1/D3/ST LED on
(see descriptions).
- Also, it is active during the transmitter memorisation phase (see
page 31).
Green led
ALIM
When on, it signals that the card is properly powered up.
Yellow led ST
When on, it signals that the total stop button is either
activated or not working.
Yellow led D1
When on, it signals that the photocells in reopening mode are
either activated or not working.
Yellow led D3
When on, it signals that the photocells in temporary stop
mode are either activated or not working.
• Close the control panel using the supplied
screws.
• Insert and secure the protective cover on
both gearmotors.
3.9 FINAL OPERATIONS
• Perform a general inspection of the sys-
tem, testing all of the installed components.
To this end, also read through the following
chapters.
Once fi nished, store this documentation and
that pertaining to any accessories, in a safe
place for future consultation and use (i.e.
maintenance).
