3.0 07/2009
- The data and information in this manual are subject to change at any time.
6

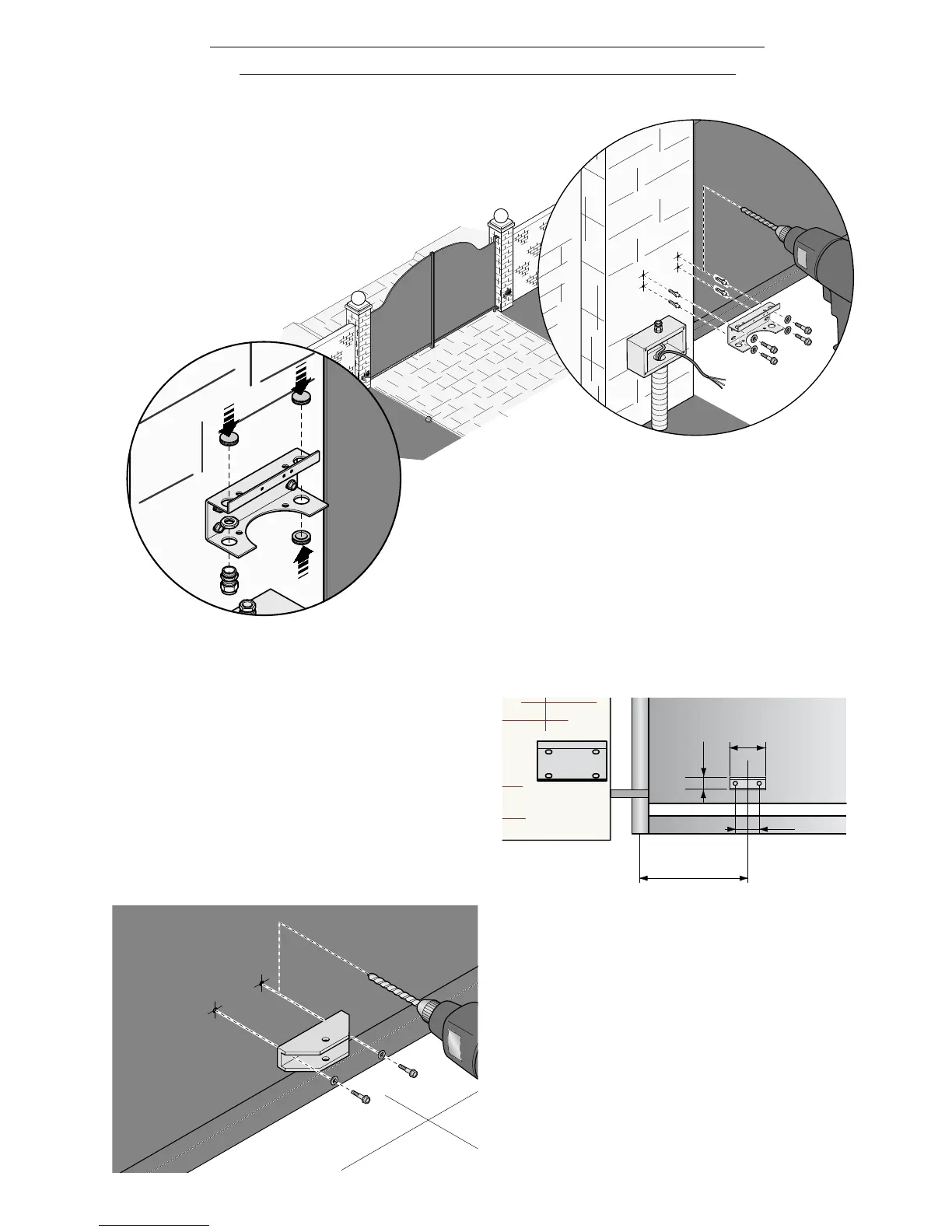

- Position the head bracket onto
the gate leaf at a “C” distance from
the axis of the hinge while taking into
account the A and B measurements as
shown in the table on page 6.
7
- Secure the bracket using securing
elements chosen according to the
gate type and materials.
4
- Secure the base plate, using securing
elements chosen according to the post
type and materials.
PRELIMINARY OPERATIONS AND BRACKET MOUNTING
5
- Insert the cable feedthroughs and the
cable gland into the base plate holes.
