Media and environment
Liquid/Media types
Aqueous media compatible with wetted
materials.
Kinematic viscosity ≤ 2 mm
2
/s (cSt)
System/Media temperature (operation)
0 to 160°C
System/Media temperature (peak)
-25 (non-freezing) to 160°C
Ambient air temperature (operation)
-25 to 60 °C
Ambient air temperature (peak)
-55 to 90 °C
Humidity, relative
0 – 95%, non-condensing

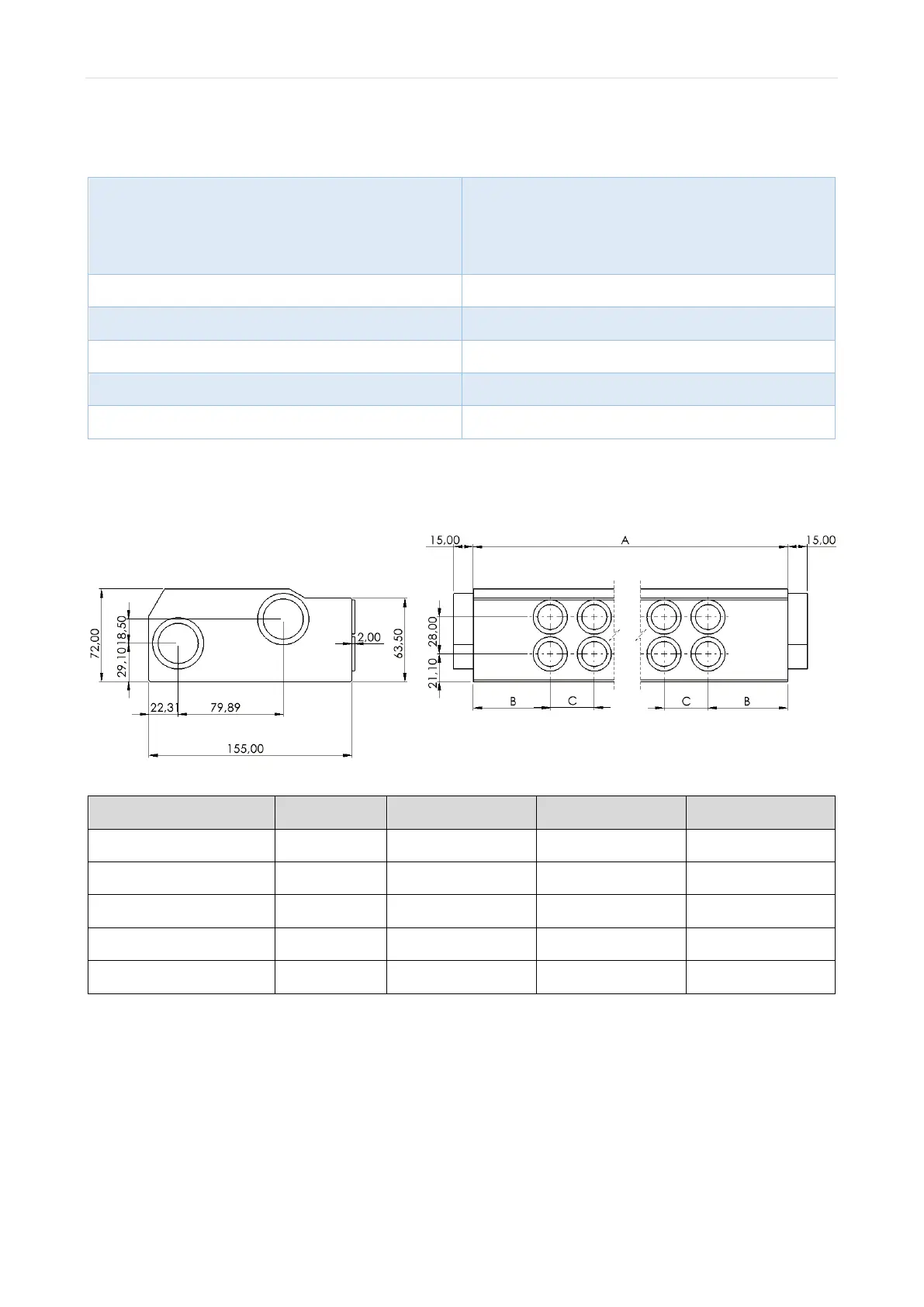

3.3. General Dimensions
Model
Channels
A [mm]
B [mm]
C [mm]
Flosense 4-Zone
4
220
59.5
33.5
Flosense 6-Zone
6
287
59.5
33.5
Flosense 8-Zone
8
354
59.5
33.5
Flosense 10-Zone
10
421
59.5
33.5
Flosense 12-Zone
12
488
59.5
33.5
Water inlet & outlet:
G 1” (BSP)
Channel valve inlet & outlet:
G ½” (BSP)
