User Guidelines – Flosense 4.0 Manifold 16-06-2020 Version 002
1. The water enters the manifold form the water supply in the inlet (Water in)
2. The water is then distributed in the channels in the manifold (upper piping)
3. From the Channels the water is then supplied to the mould by whichever method the
user prefers (most often hoses)
4. After passing through the mould the water is then returned to the manifold (lower
piping)
5. The water is finally returned to the water supply

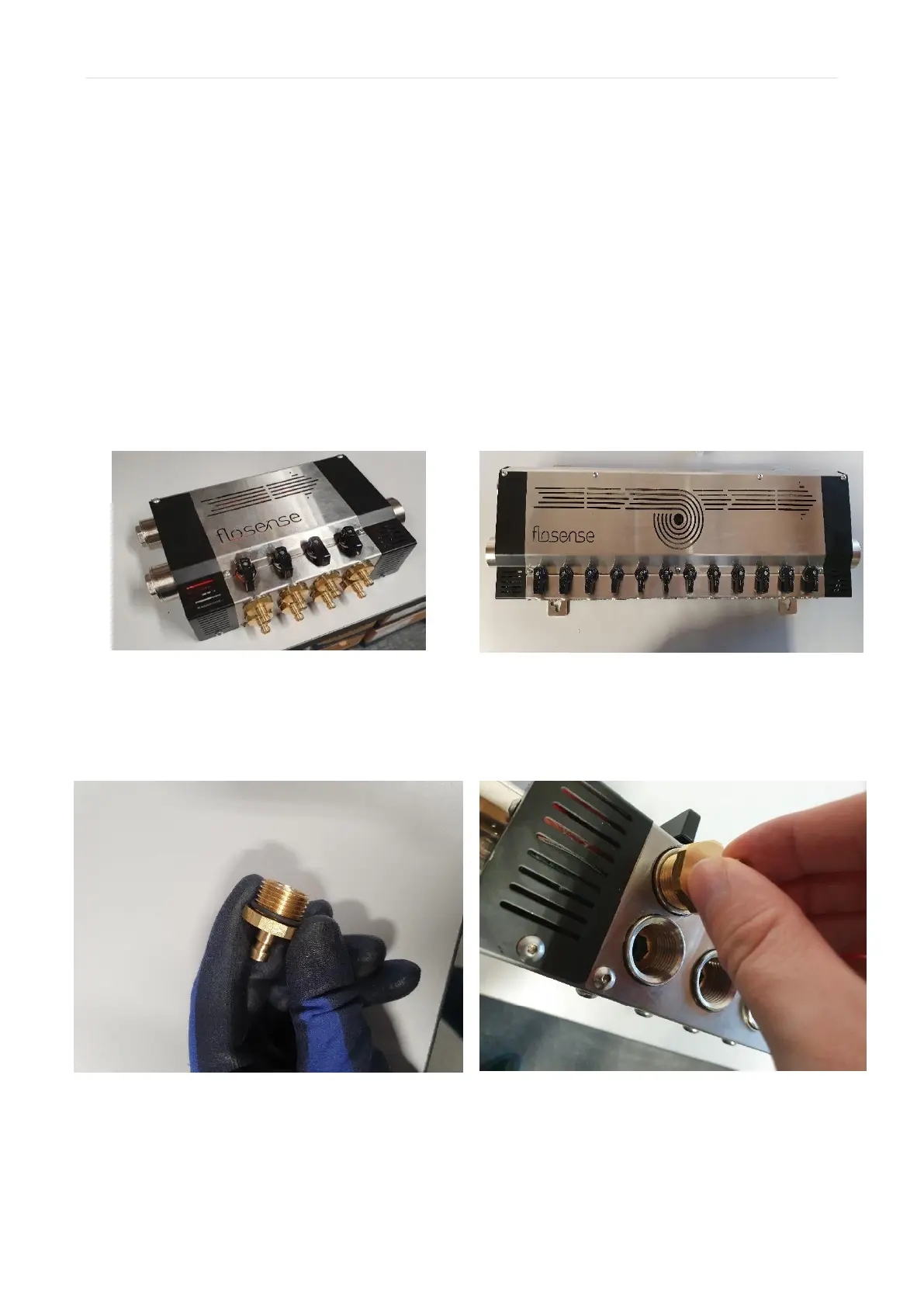

3.5. Installation
Incomplete 12 zone manifold
Remember that depending on the size of the
manifold, you may need between 8 and 24
fittings in order to fill all channels.
1. Select fittings appropriate for your needs.
Remember to have an appropriate O ring on
the fitting. The thread in the channels is G
1/2”.
2. Insert the fitting in the first channel. It is
recommended to start with the top row.
