User Guidelines – Flosense 4.0 Manifold 16-06-2020 Version 002
4. Service & Maintenance
Before disassembling anything, empty the system of water, and disconnect water and power
supply.
We strongly recommend having the service done by skilled and experienced personnel, in
order to assure proper disassembly and reassembly.
4.1. Removing cover
If you need to gain access to any of the internal components, such as sensors, cables or
the piping, you need to remove the top cover of the manifold

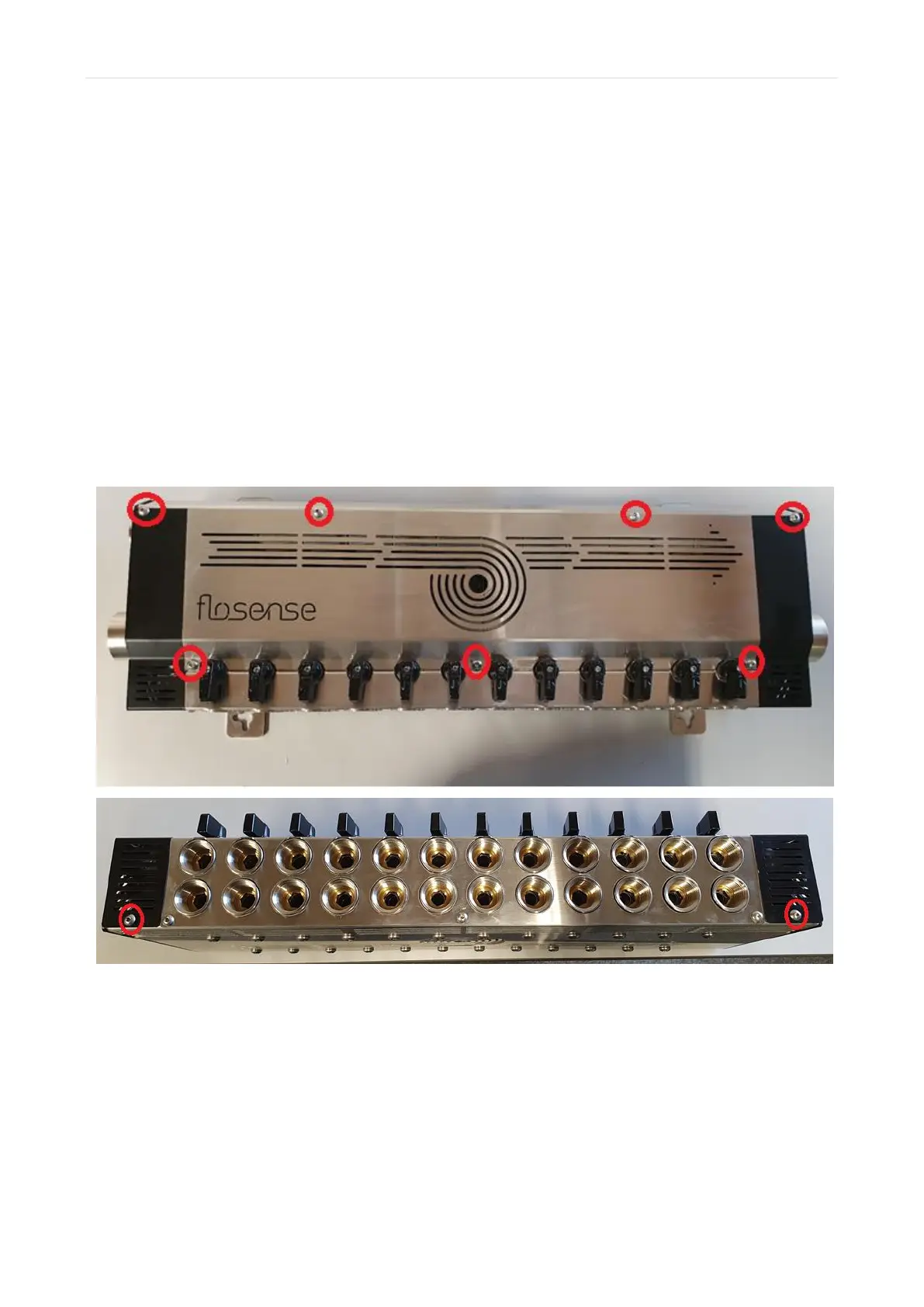

1. Locate all the screws on the top plate. They are marked with red circles shown above.
Depending on the size of the manifold, there may be fewer than shown on the 12-zone
manifold shown above.
