User Guidelines – Flosense 4.0 Manifold 16-06-2020 Version 002
4.2. Refitting cables

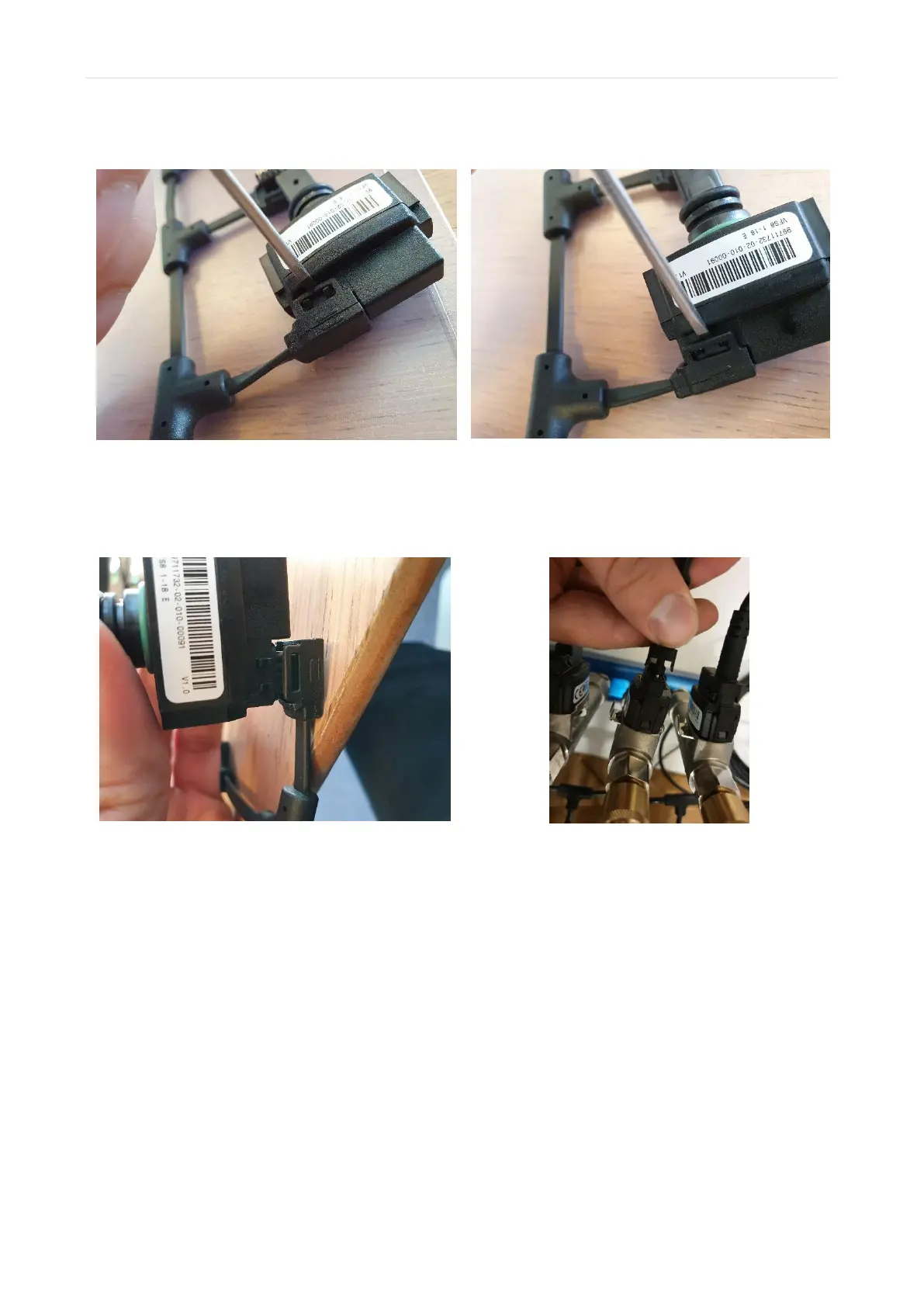

1. In order to remove the cable, you will
need a small tool, such as a screwdriver
in order to lift the snap fits holding the
sensor.
2. Lift the snap fit gently, so as not to break
it. Once it bends slightly, you will know
that it has released.
Do this for both sides of the sensor.
3. Once both sides are released from the
snap fit, you can pull out the sensor
gently
4. Continue doing this for all the sensors
you need to remove from the cable.
