FD3-S Premium Line
3.6 Rail layout

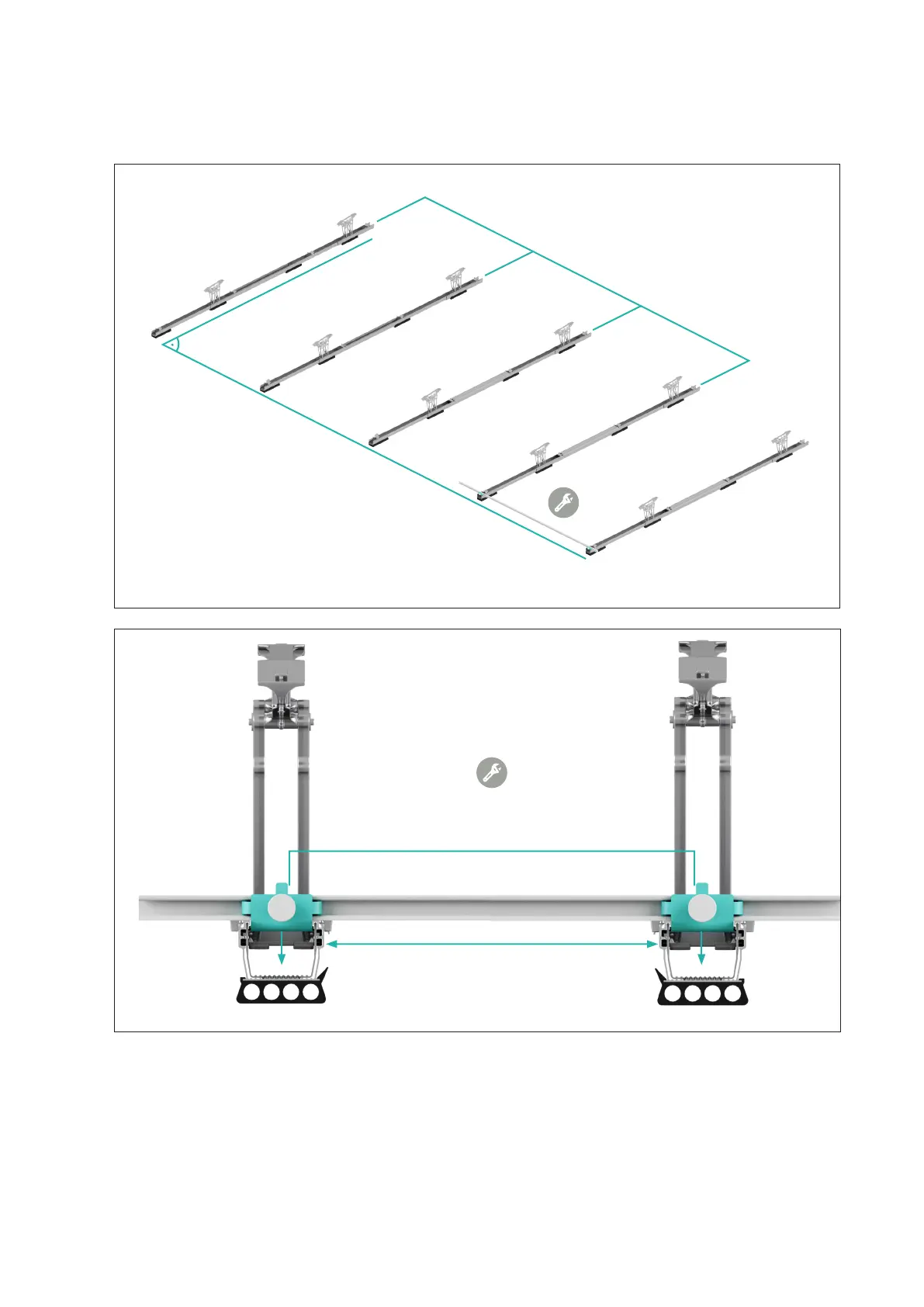

Place the rails parallel to the length of the module.
Rail spacing = Module length
Rail spacing = Module length
Rail spacing = Module length
Distance gauge
Rail spacing = Module length
