Installation manual
3. Assembly

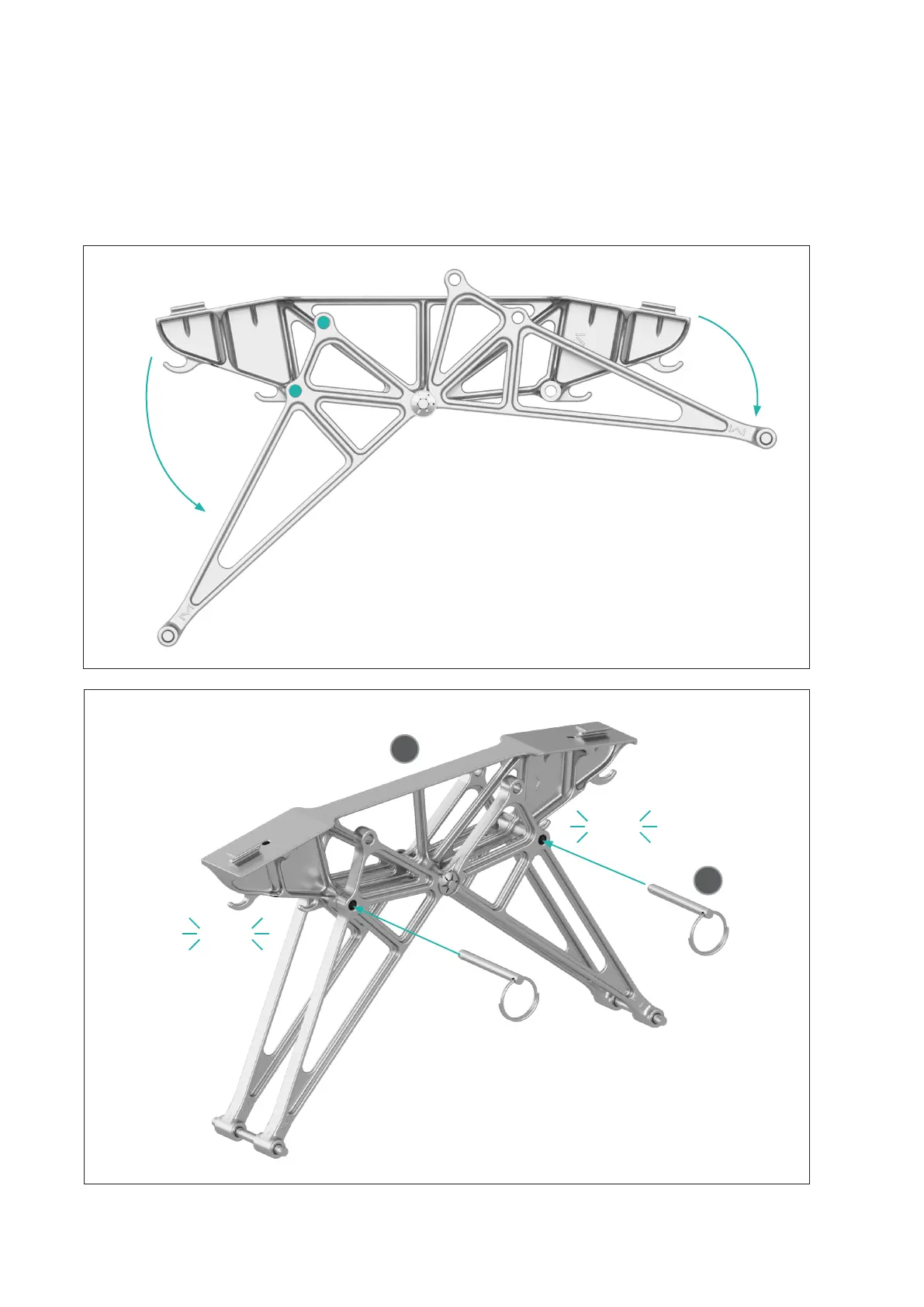

3.1 Universal central and end support – 10° & 15°
Fold the feet down and secure with two ball locking pins (7) to desired positions 10° or 15°.
See designation.
CLICK
CLICK


10°
15°
