FD3-S Premium Line
°
°
3.9 Assembly of modules and side covers
The side deflector is locked with the
end clamp (17) locked. See next page

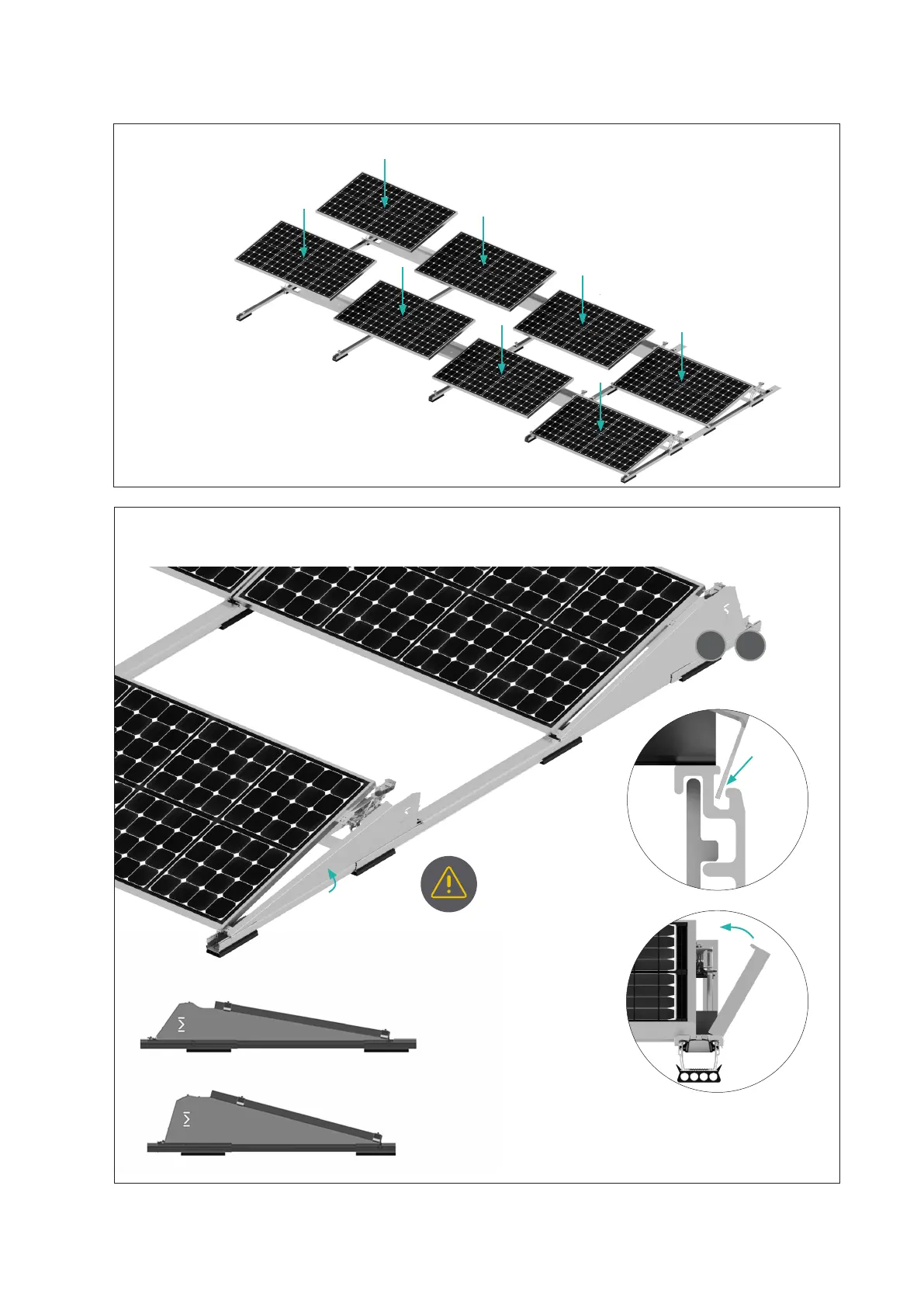

. Arrange modules
. Insert in and fix the right (10) and left (11) side deflector


Make sure the noses of the
side deflector have been
placed in the correct position,
to ensure a correct grip.
 
Tighten with a torque of 8Nm.
