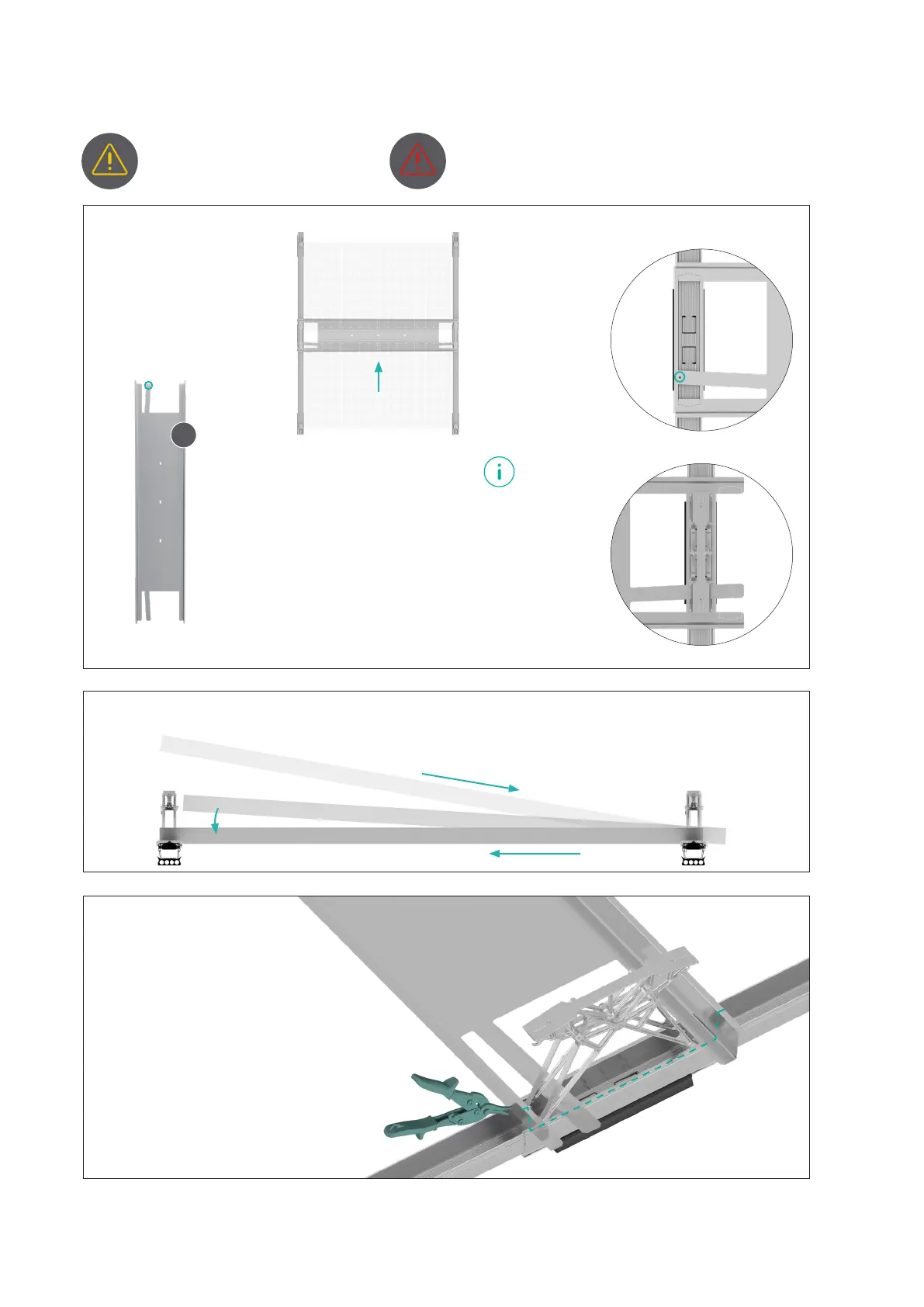

3.7.2 Ballast tray for single row arrangement
Note the maximum weight
per ballast tray
The number, position and weight of the
necessary ballast (stones or gravel) should
always be included in the project information
schmale: mm
breite: mm
Installation manual
Order
First, place a narrow
side on the outside
9
Hole marked
the wide side.
The overhang of the
ballast tray depends
on the module width
. For later installation
of the side plate, the ballast tray
must be cut to length
flush with the rail.
. Insert the ballast tray (8) diagonally, see chapter 3.7.1
