3. On tractor/truck and semi-trailer mounted applica-
tions, hoses/piping to the hydraulic motor must be
connected by quick release (non-spill) couplings. To
reduce back-pressure on the motor, one size larger
couplings than the return line must be used.
NOTICE
QUICK RELEASE COUPLINGS MUST BE PROTEC-
TED FROM CONTAMINATION AND DAMAGE AND BE
PROPERLY CLEANED BEFORE RE-CONNECTION.

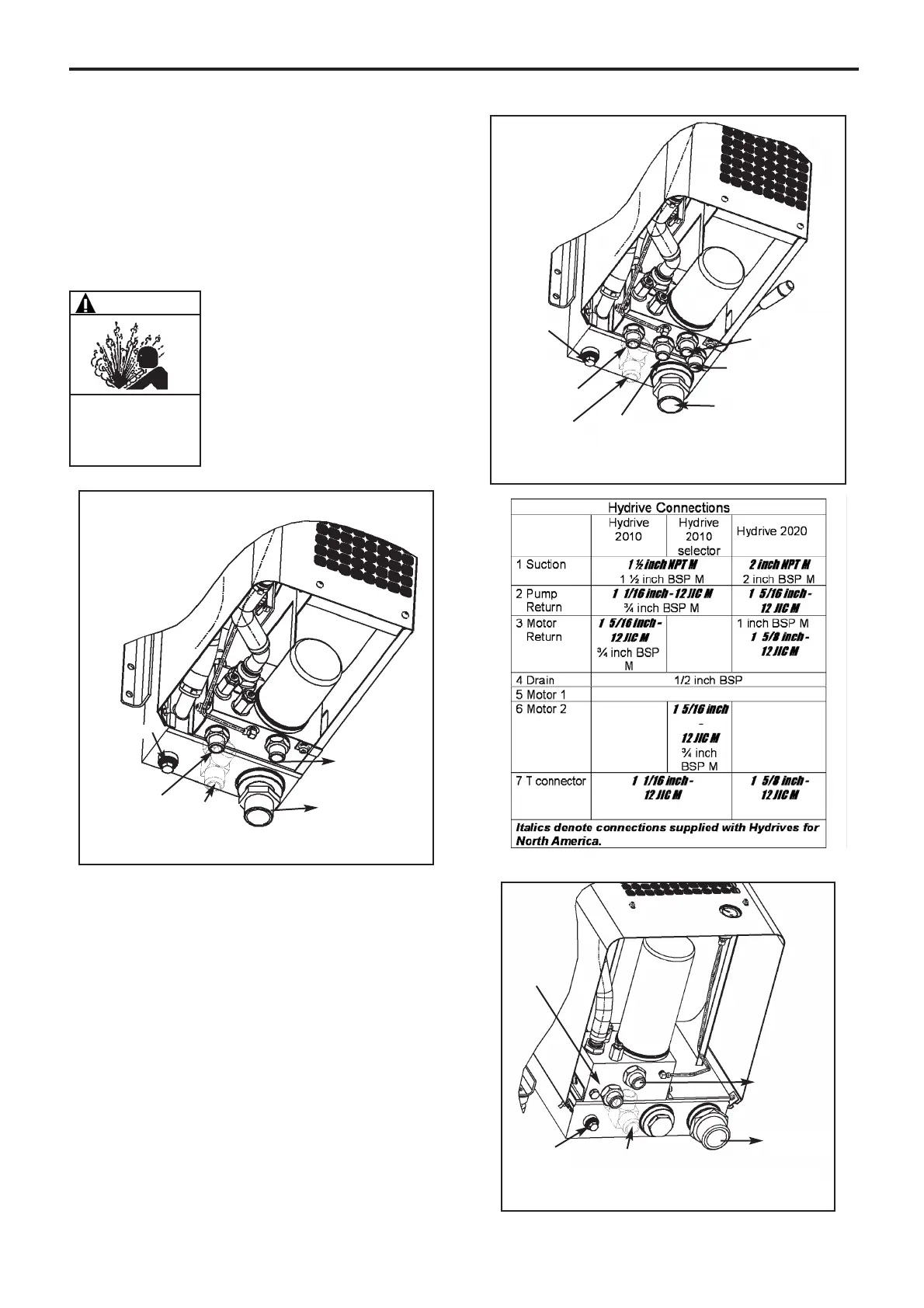

* T junctions are offered on NPT HYDRIVE
4. Drain
2. Pump
(HP)
1. Suctionn
3. Return HB
Figure 6
HYDRIVE 2020A connections
7. T junction *
4. Drain
2. Pump
6. Motor 2
(High Pressure)
1. Suction
5. Motor 1
(High Pressure)
Figure 5
HYDRIVE 2010A selector connections
3. Return
(Low Pressure)
7. T-junction*
4. Drain
2. Pump
(High Pressure)
1. Suction
3. Return
(Low Pressure)
Figure 4
HYDRIVE 2010A connections
7. T-junction*
WARNING
Hazardous pressure
can cause
personal injury
or property damage.
QUICK RELEASE COUPLINGS MUST BE
FULLY CONNECTED. FAILURE TO DO
SO CAN CAUSE PERSONAL INJURY OR
PROPERTY DAMAGE.
8/16
NT 206-A00 10.11 Hydrive e
3. INSTALLATION (continued)
