EDS-408A/405A Series User’s Manual Featured Functions
3-42
NOTE
Port-based VLAN settings only affect one switch. The EDS-405A can have a maximum of 5
VLAN settings and the EDS-408A can have a maximum of 8 VLAN settings.
NOTE
The Turbo Ring Ports and Coupler Ports will be added to all VLANs if you enable the “Turbo
Ring DIP Switch” and set the Turbo Ring DIP Switch from OFF to ON.
NOTE
If you enable the Hardware DIP Switch for Turbo Ring and set the Turbo Ring DIP Switch from
ON to OFF, then the Ring Ports and Coupler Ports that are added to all VLANs will be restored
to their previous software settings. (For details on how to do this, refer to “Configuring Basic
Settings—Turbo Ring DIP Switch.”)

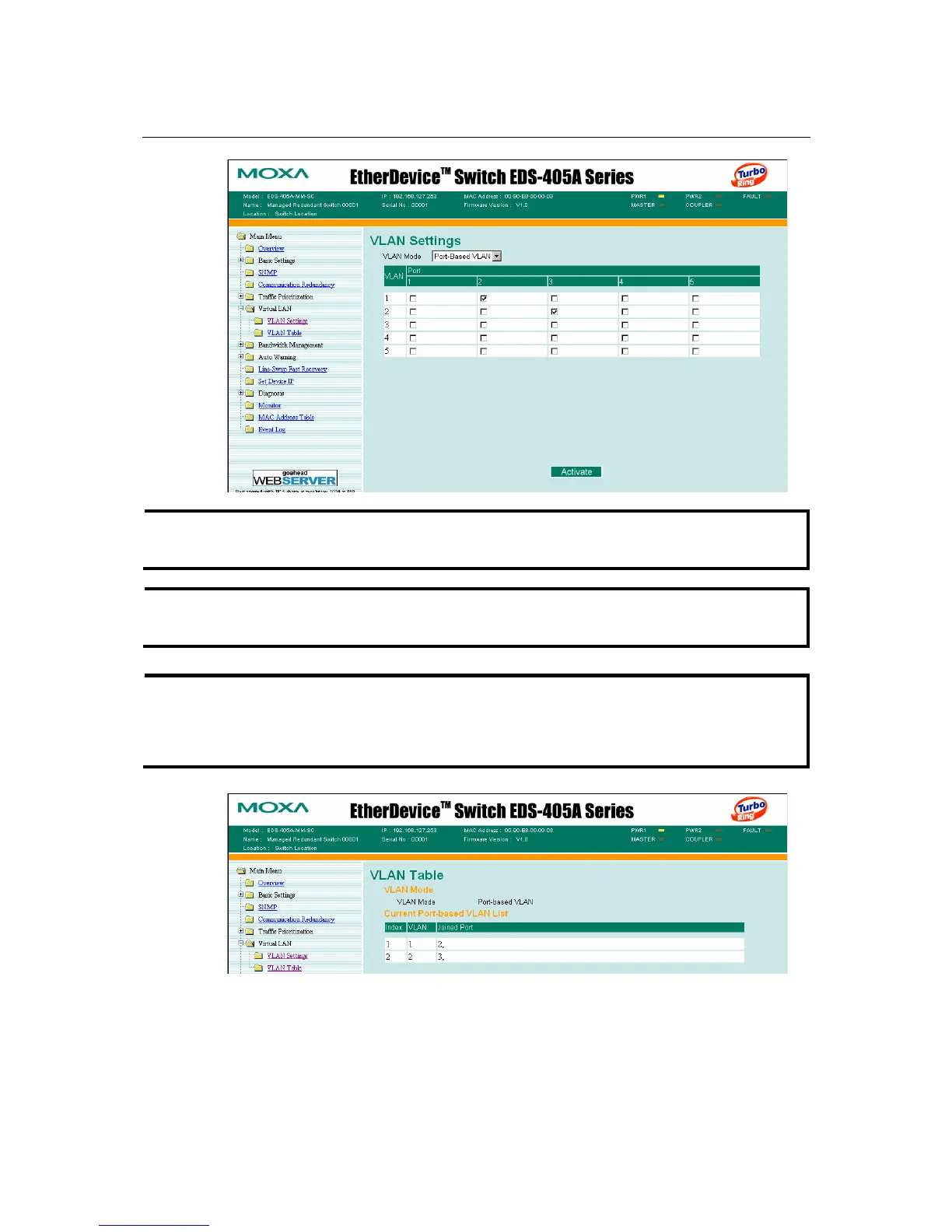

Using this table, you can review the created VLAN groups and joined ports. (NOTE: The user
interface for the EDS-408A shows 8 ports.)
