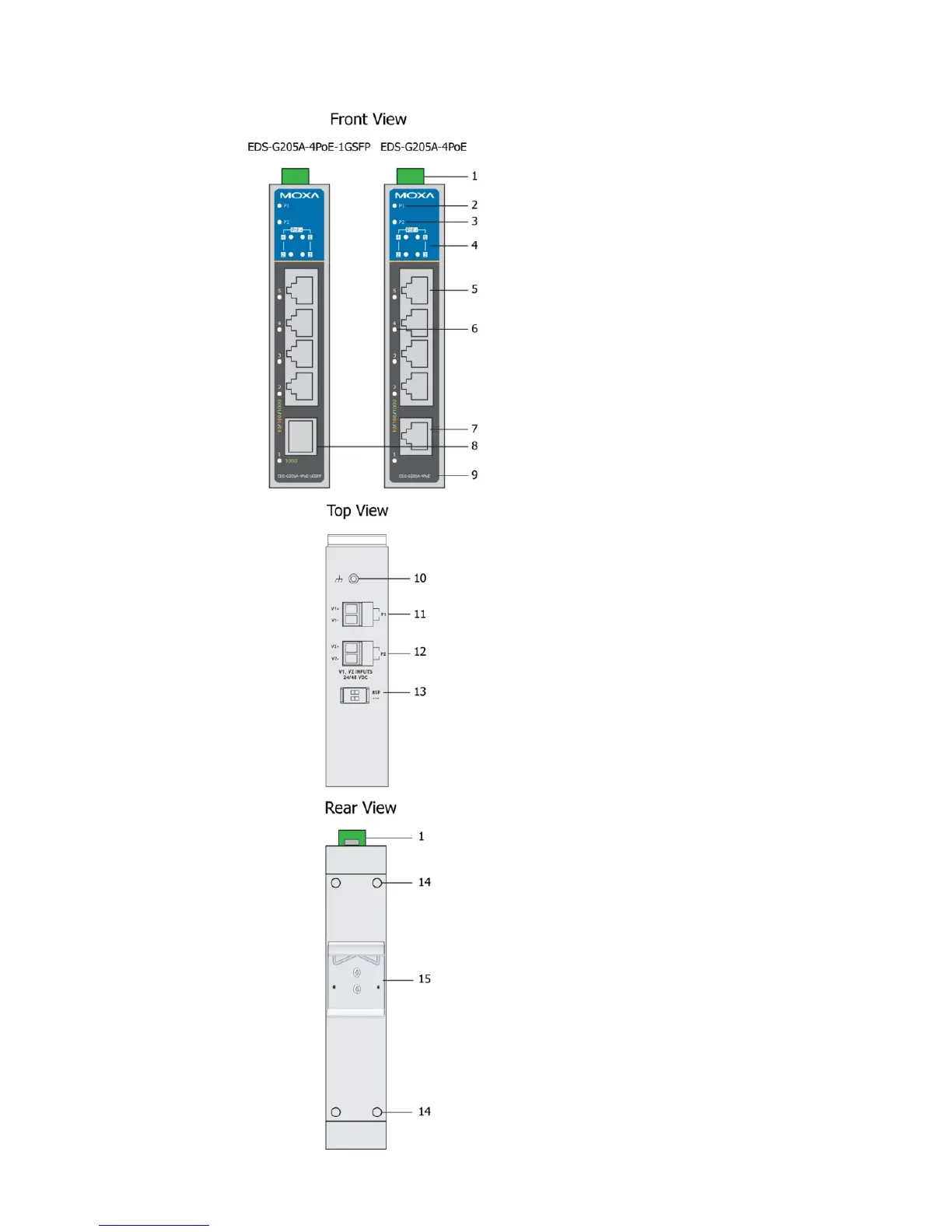

EDS-G205A-4PoE (Standard) Panel Layouts
1. Terminal blocks for
P1/P2 power inputs
2. Power input P1 LED
3. Power input P2 LED
4. PoE status LED
5. 10/100/1000Base-T(X)
PoE ports (port 2/3/4/5)
6. TP port speed LED
7. 10/100/1000Base-T(X)
port (port 1)
8. 10/100/1000Base-X SFP
slot
9. Model name
10. Grounding screw
11. P1 power input terminal
block
12. P2 power input terminal
block
13. DIP switches
14. Screw holes for panel
mounting kit
15. DIN-Rail mounting kit
