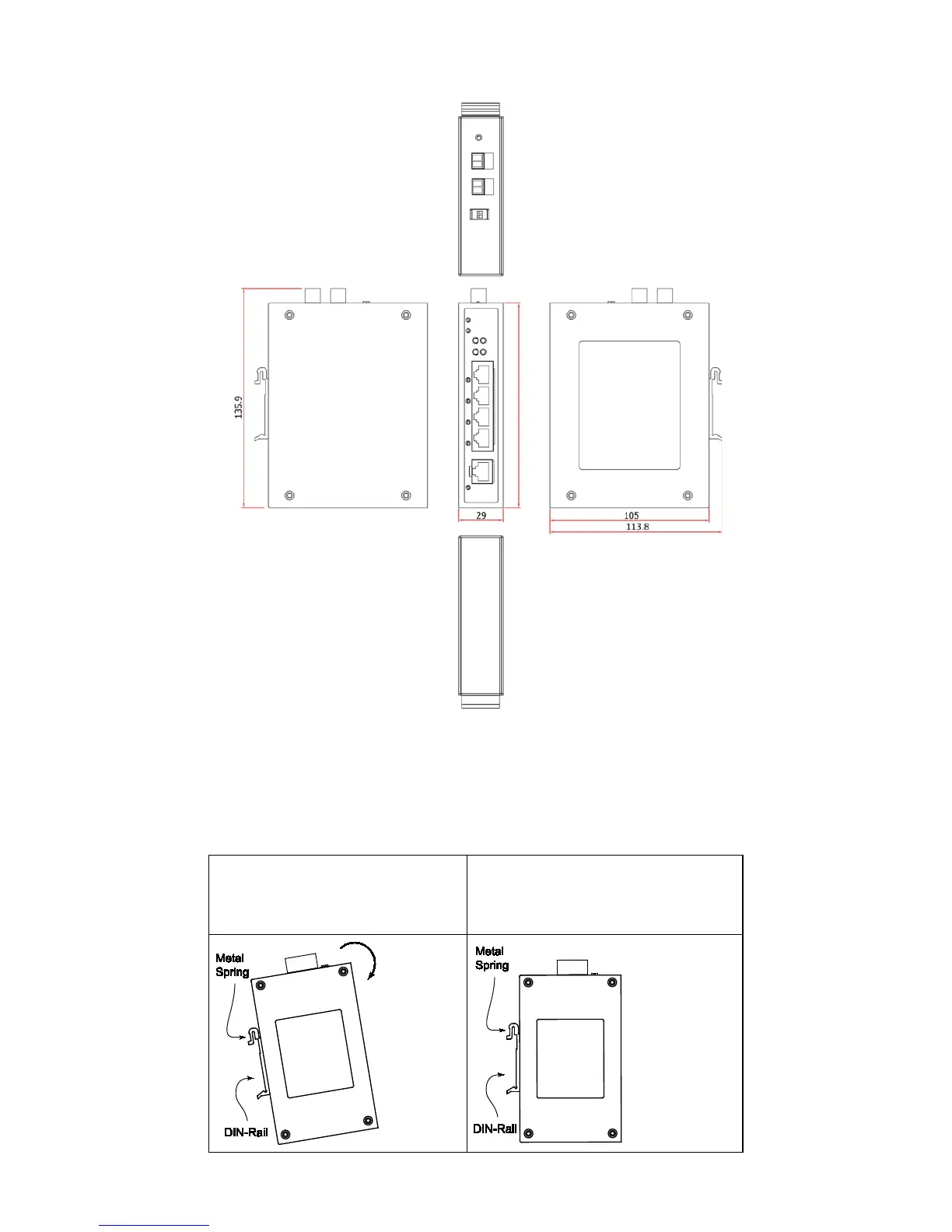

Mounting Dimensions (unit = mm)
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the
back panel of the EDS when you take it out of the box. If you need to
reattach the DIN-Rail attachment plate, make sure the stiff metal spring
is situated towards the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN-Rail into
the slot just below the stiff metal
spring.
STEP 2:
The DIN-Rail attachment unit will
snap into place as shown below.
