MGate MB3000 Modbus Gateway User Manual
72

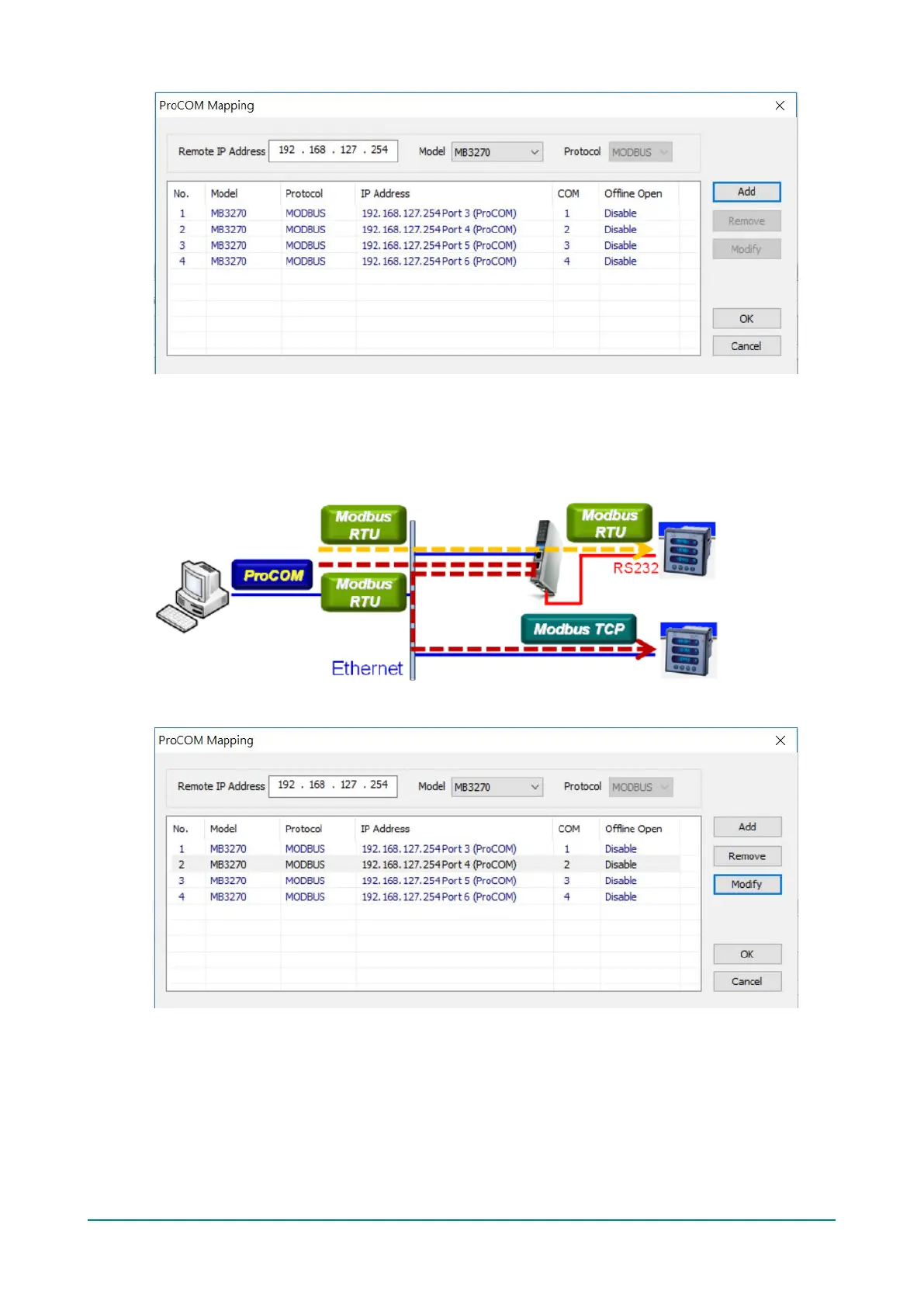

This way, when you send a Modbus request to ProCOM, the driver will forward your request to the MGate
MB3x70 and the MGate MB3x70 will forward the request to the target Modbus device using the preset
Modbus device mode and Slave ID. For example, the Modbus request from ProCOM can be redirected to a
Modbus RTU/ASCII device that is behind the MGate MB3x70's serial interface or to a Modbus TCP device
through the MGate MB3x70's Ethernet port. In addition, it can be redirected to another ProCOM port on the
MGate MB3x70.
If you would like to change the COM port numbers, double-click on the items as follows:

Moxa Technologies MGate MB3180 Specifications

General

Full duplex	Yes
Data transfer rate	0.1 Gbit/s
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Interface	RS-232/422/485, RJ45
Safety	UL 60950-1, EN 60950-1
Certification	EN 55024, \\r EN 61000-4-2 (ESD) Level 2, \\r EN 61000-4-3 (RS) Level 2, \\r EN 61000-4-4 (EFT) Level 2, \\r EN 61000-4-5 (Surge) Level 2, \\r EN 61000-4-6 (CS) Level 2, \\r EN 61000-4-8, \\r EN 61000-4-11, \\r EN 61000-4-12
LED indicators	Power
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64

Weight and Dimensions

Weight	340 g
