MGate MB3000 Modbus Gateway User Manual
83

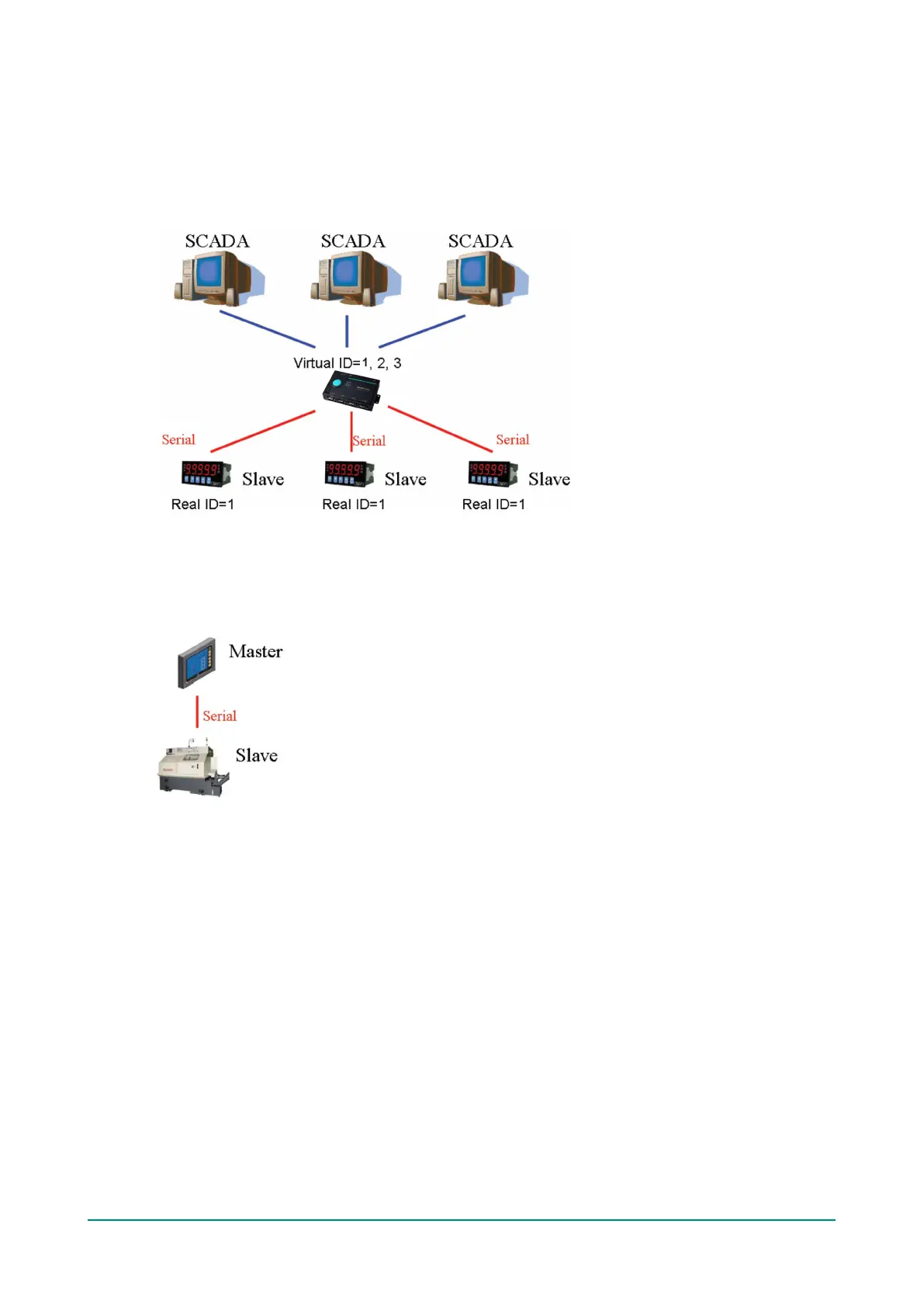

Replace Serial Masters with Ethernet
Master(s), Slave IDs are Fixed
Some legacy Modbus slave devices have fixed IDs that cannot be changed. In order to integrate the devices
into a Modbus TCP network, a multiport MGate model (MB3280, MB3270, or MB3480) can be used to assign
virtual slave IDs. For more information about virtual slave IDs, please refer to Chapter 9.
Keep Serial Master and Add Ethernet Master(s)
In this scenario, the serial control system is a direct, low-latency system. The serial master must not be
replaced, but Ethernet masters will need to have access to the serial slaves for monitoring or supervision.

Moxa Technologies MGate MB3180 Specifications

General

Full duplex	Yes
Data transfer rate	0.1 Gbit/s
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Interface	RS-232/422/485, RJ45
Safety	UL 60950-1, EN 60950-1
Certification	EN 55024, \\r EN 61000-4-2 (ESD) Level 2, \\r EN 61000-4-3 (RS) Level 2, \\r EN 61000-4-4 (EFT) Level 2, \\r EN 61000-4-5 (Surge) Level 2, \\r EN 61000-4-6 (CS) Level 2, \\r EN 61000-4-8, \\r EN 61000-4-11, \\r EN 61000-4-12
LED indicators	Power
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64

Weight and Dimensions

Weight	340 g
