MGate MB3000 Modbus Gateway User Manual
67
Verifying the Location of the Unit

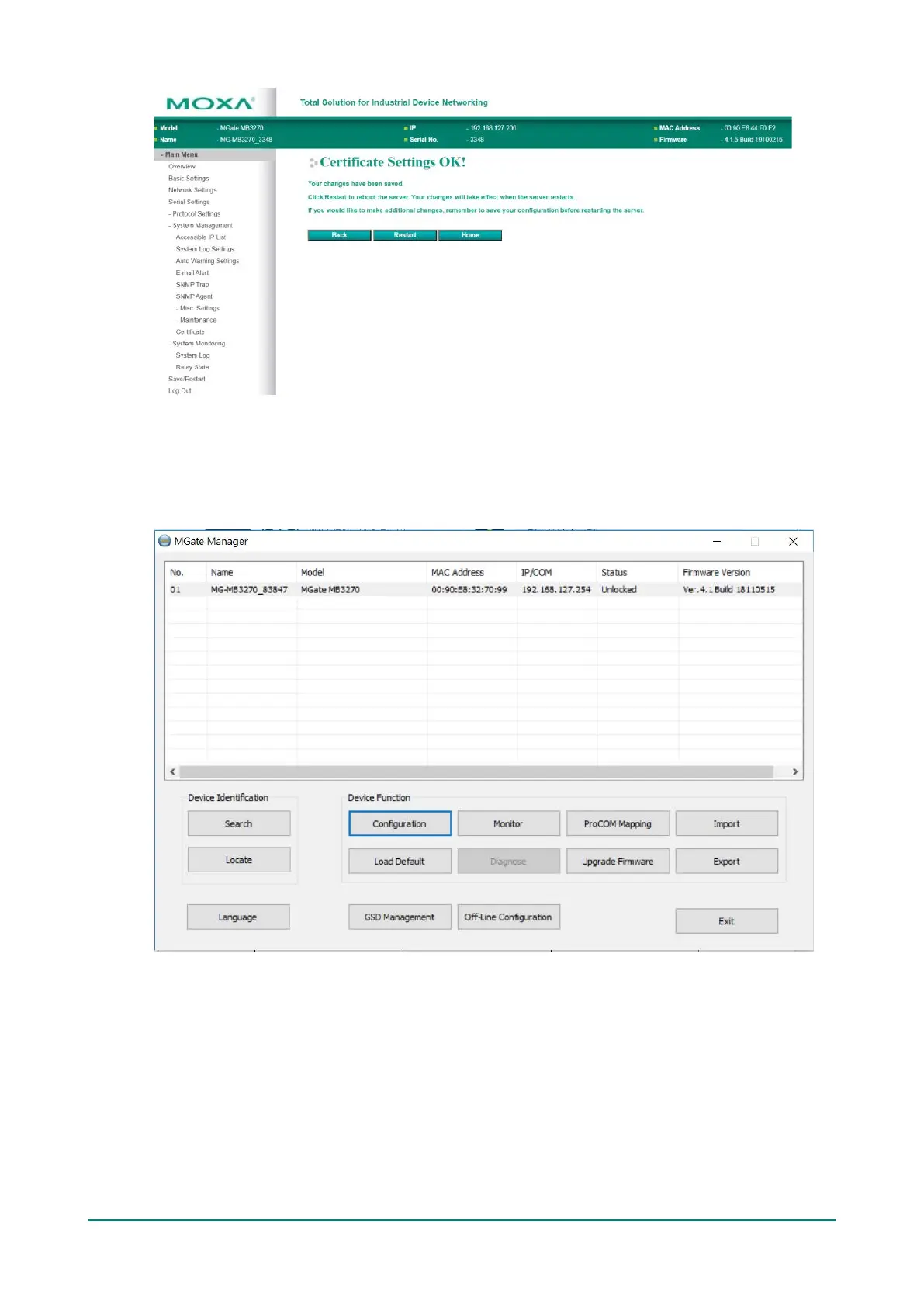

If you are managing multiple MGate units, you may wonder if you are configuring the correct unit in MGate
Manager. You can select a unit in MGate Manager and click Locate to make the unit’s Ready LED blink for a
few seconds. This will tell you which physical unit corresponds with the unit that you have selected.
Monitoring Modbus Activity
For troubleshooting or management purposes, you can monitor the data passing through any MGate
MB3000 on the network. Data events will be logged as they pass through the gateway. Rather than simply
echoing the data, MGate Manager presents the data in an intelligent, easily-understood format, with clearly
designated fields including source, type, destination, contents, and more. Events can be filtered in different
ways, and the complete log can be saved to a file for later analysis.

Moxa Technologies MGate MB3180 Specifications

General

Full duplex	Yes
Data transfer rate	0.1 Gbit/s
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 55 °C
Operating relative humidity (H-H)	5 - 95 %
Interface	RS-232/422/485, RJ45
Safety	UL 60950-1, EN 60950-1
Certification	EN 55024, \\r EN 61000-4-2 (ESD) Level 2, \\r EN 61000-4-3 (RS) Level 2, \\r EN 61000-4-4 (EFT) Level 2, \\r EN 61000-4-5 (Surge) Level 2, \\r EN 61000-4-6 (CS) Level 2, \\r EN 61000-4-8, \\r EN 61000-4-11, \\r EN 61000-4-12
LED indicators	Power
Compatible operating systems	Windows 98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64

Weight and Dimensions

Weight	340 g
