NPort 5000 Series User Manual

Disabled Mode

Web Interface for the NPort 5100, 5200, and IA5000 Series Only

Web Interface for the Overall NPort 5000 Series

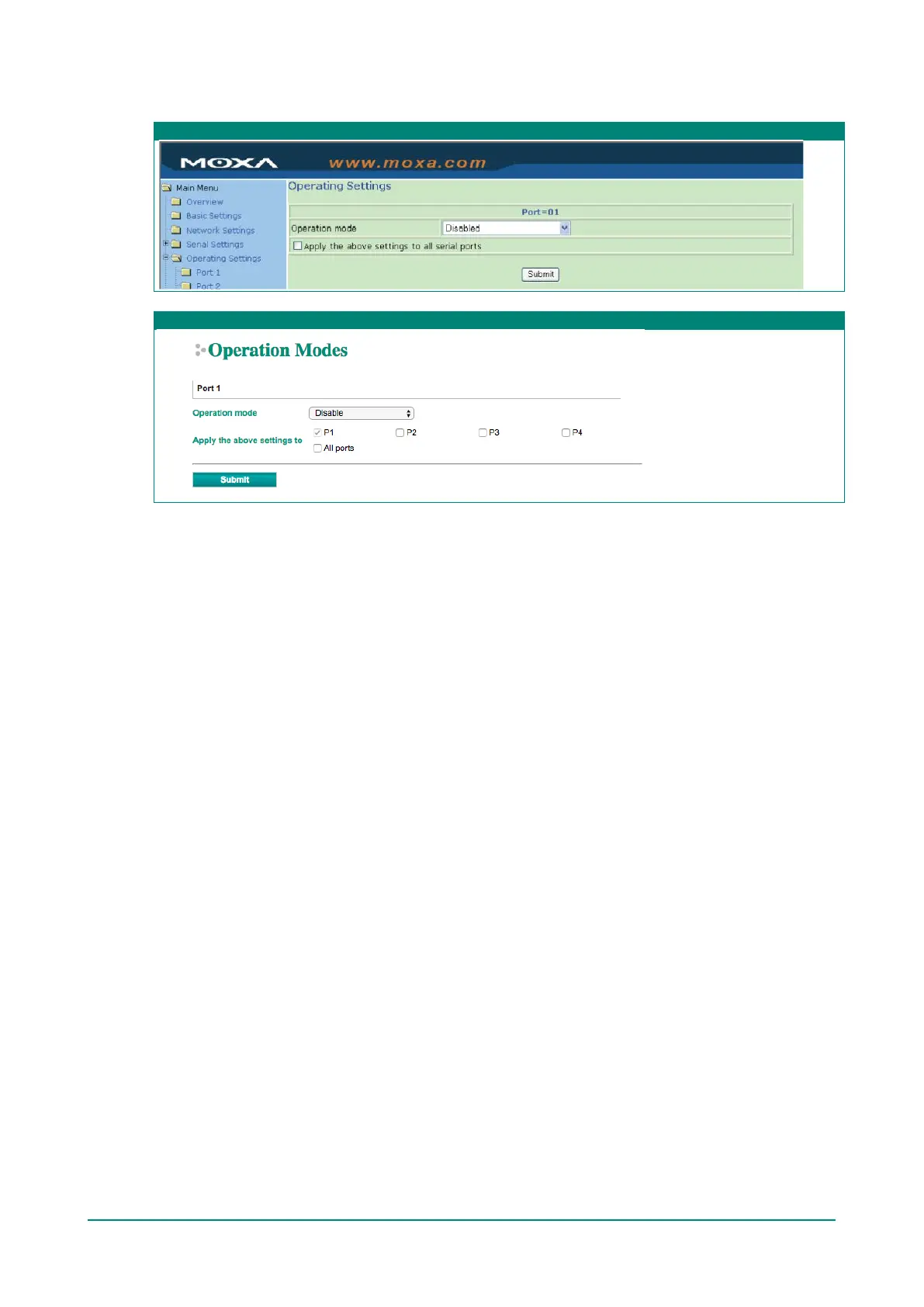

When Operation mode is set to Disabled, that particular port will be disabled. Select the Apply the above

settings to all serial ports checkbox to apply this setting to the other ports.
