NPort 5000 Series User Manual

172

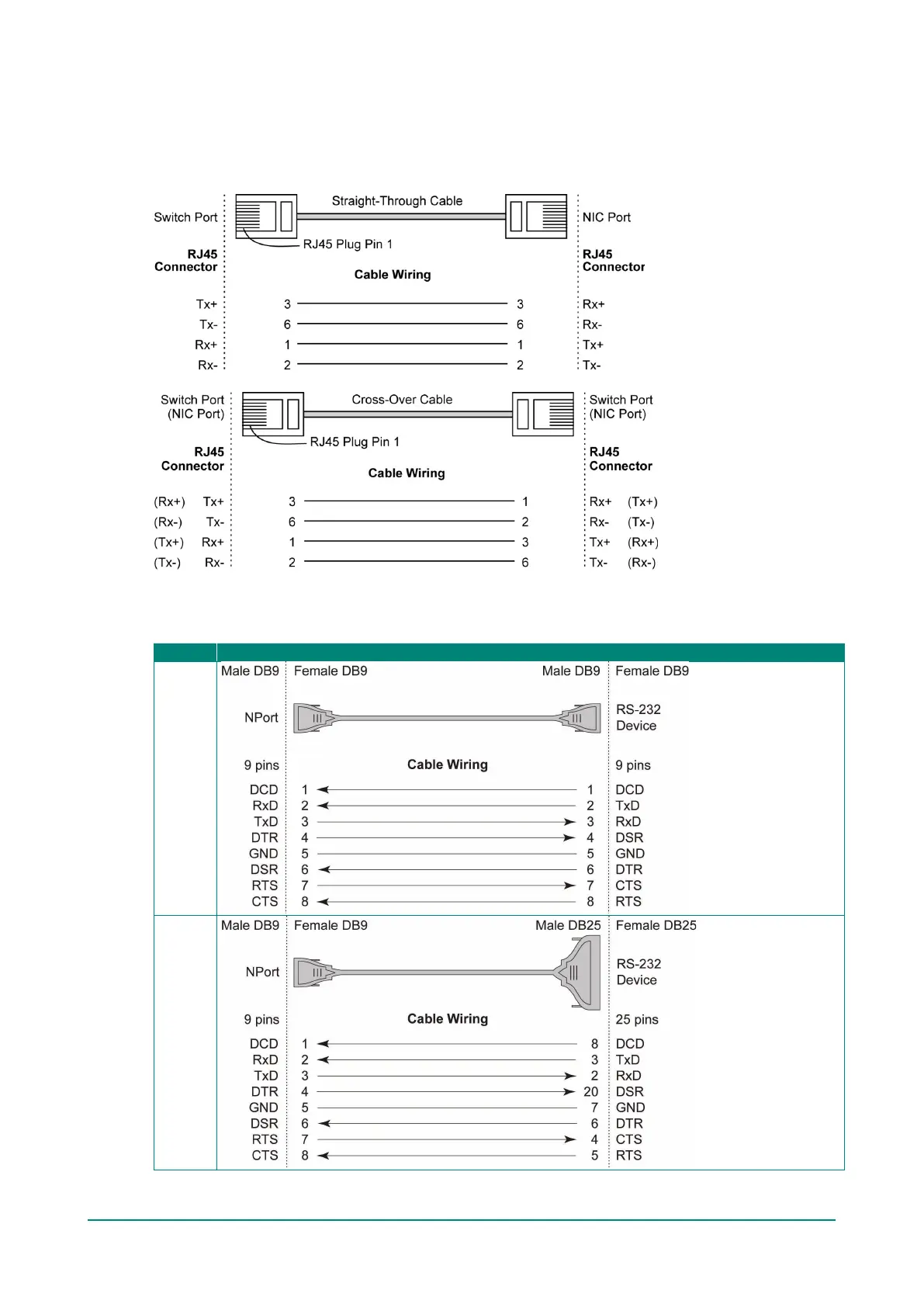

Cable Wiring Diagrams

Ethernet Cables

Serial Cables

Serial Cable Wiring Diagrams

Female DB9 to Male DB9

(RS-232)

Female DB9 to Male DB25

(RS-232)
