NPort 5000 Series User Manual

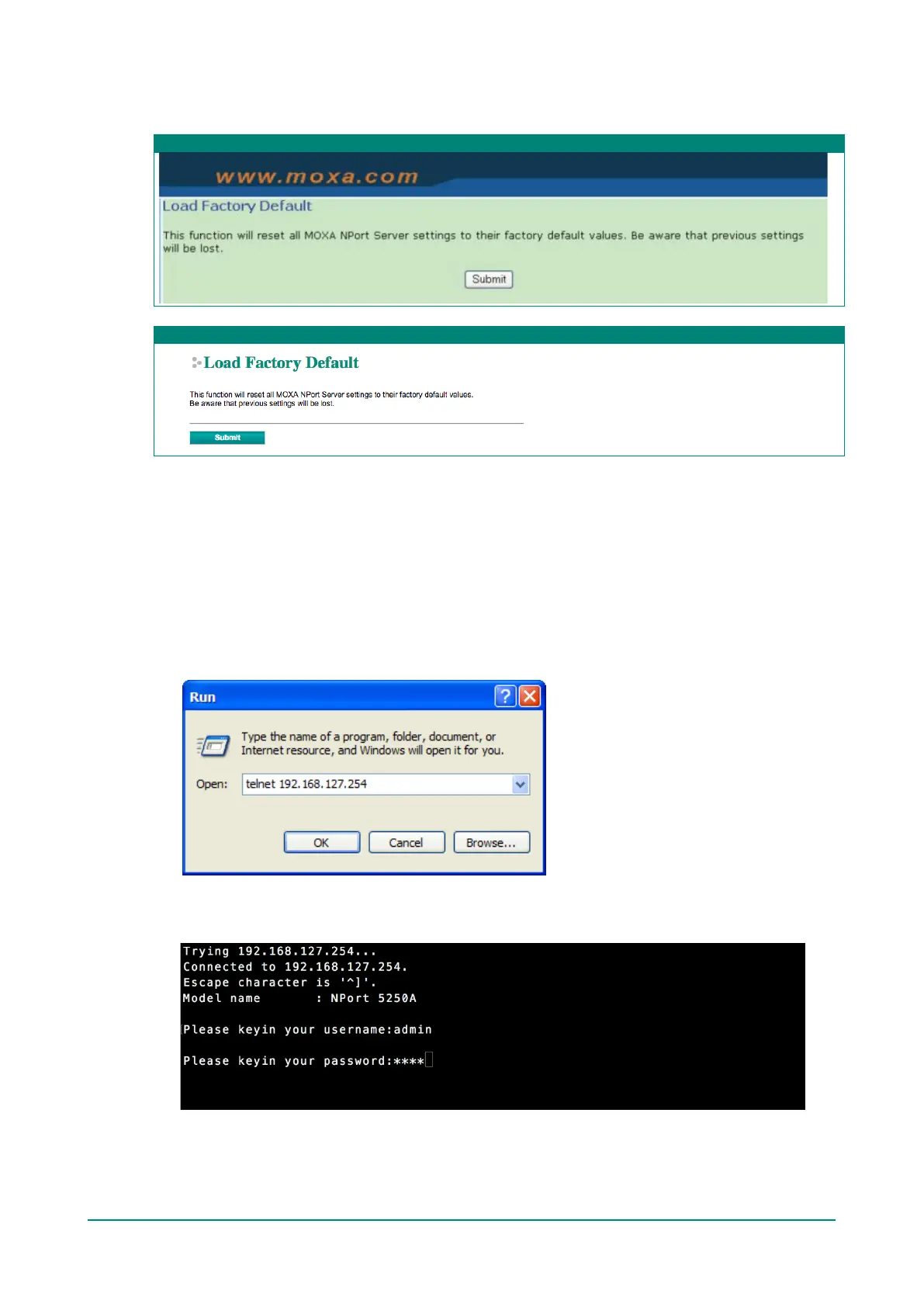

Load Factory Default
Web Interface for the NPort 5100, 5200, and IA5000 Series Only
Web Interface for the Overall NPort 5000 Series
This function will reset all of the NPort’s settings to the factory default values. Be aware that previous
settings will be lost.
Configuration by Telnet Console
You can update your NPort’s IP address by using Telnet to connect to your NPort IA5000A over the network.
(Figures in this section were generated using the NPort IA5450AI).
1. From the Windows desktop, click on Start and then select Run.
2. Type telnet 192.168.127.254 (use the correct IP address if different from the default) in the Open
text input box, and then click OK.
3. When the Telnet window opens, you will be prompted to input the Console password (the default
username is admin and password is moxa; for the NPort 5100/5200/IA5000, it only requires the
default password moxa); input the password and then press Enter.
