NPort 5000 Series User Manual
181

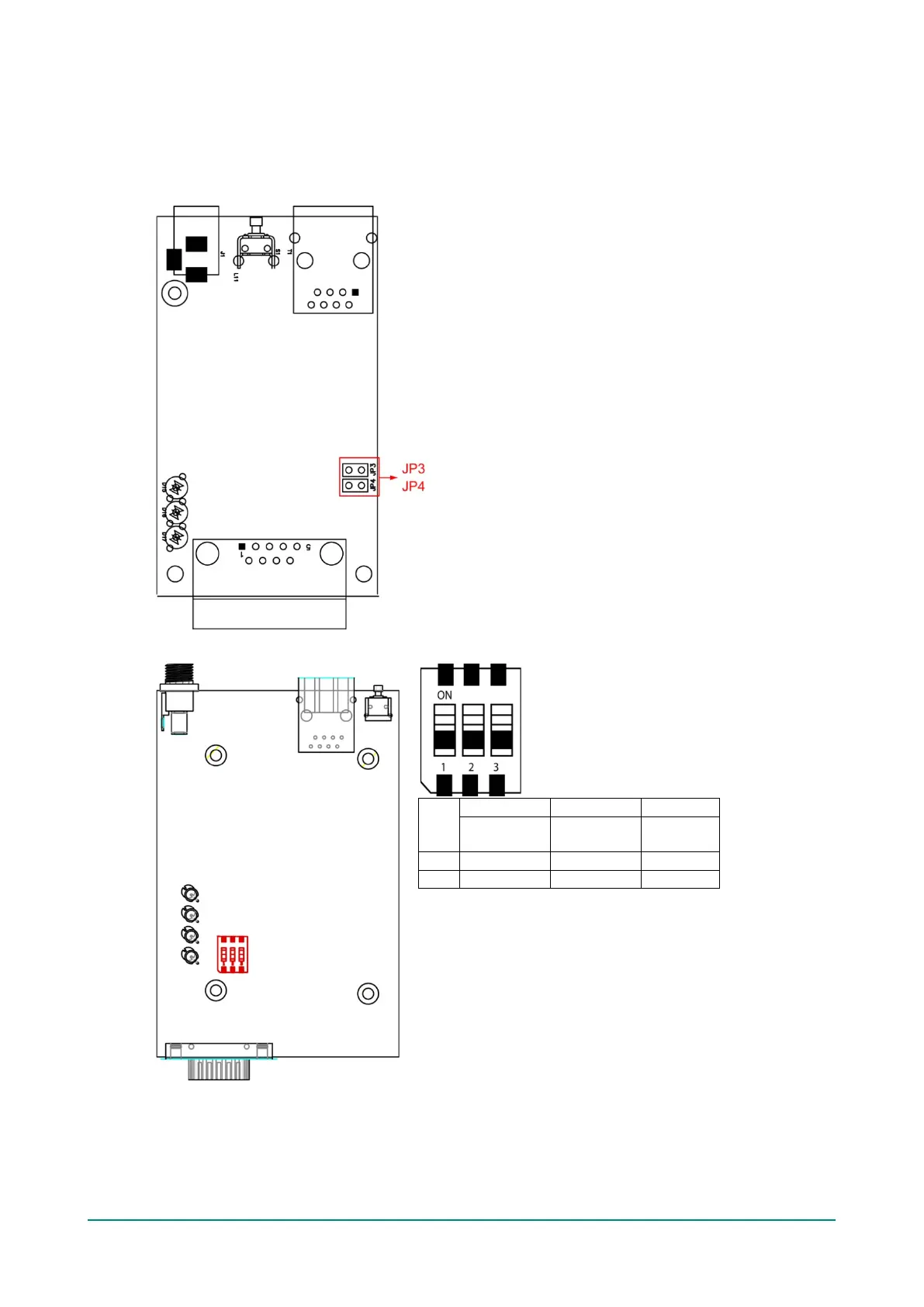

NPort 5130A/5150A (Jumpers)
To set a pull high/low resistor to 150 kΩ, make sure that the two jumpers (JP3 and JP4) assigned to
the serial port are not shorted by jumper caps. This is the default setting.
To set a pull high/low resistor to 1 kΩ, make sure that the two jumpers (JP3 and JP4) assigned to the
serial port are shorted by jumper caps.
NPort P5150A (DIP Switches)
SW
1
2
3
Pull-high
resistor
Pull-low
resistor
Terminator
ON
1 kΩ
1 kΩ
120 Ω
OFF
150 kΩ*
150 kΩ*
–*
* Default
