MOZELT T4002 - Additional Fault Indicators

No LED indicator recognizable
- Cable damage / power breakdown in the
control cable
Generator runs within its working range, however, no funcon is
recognizable

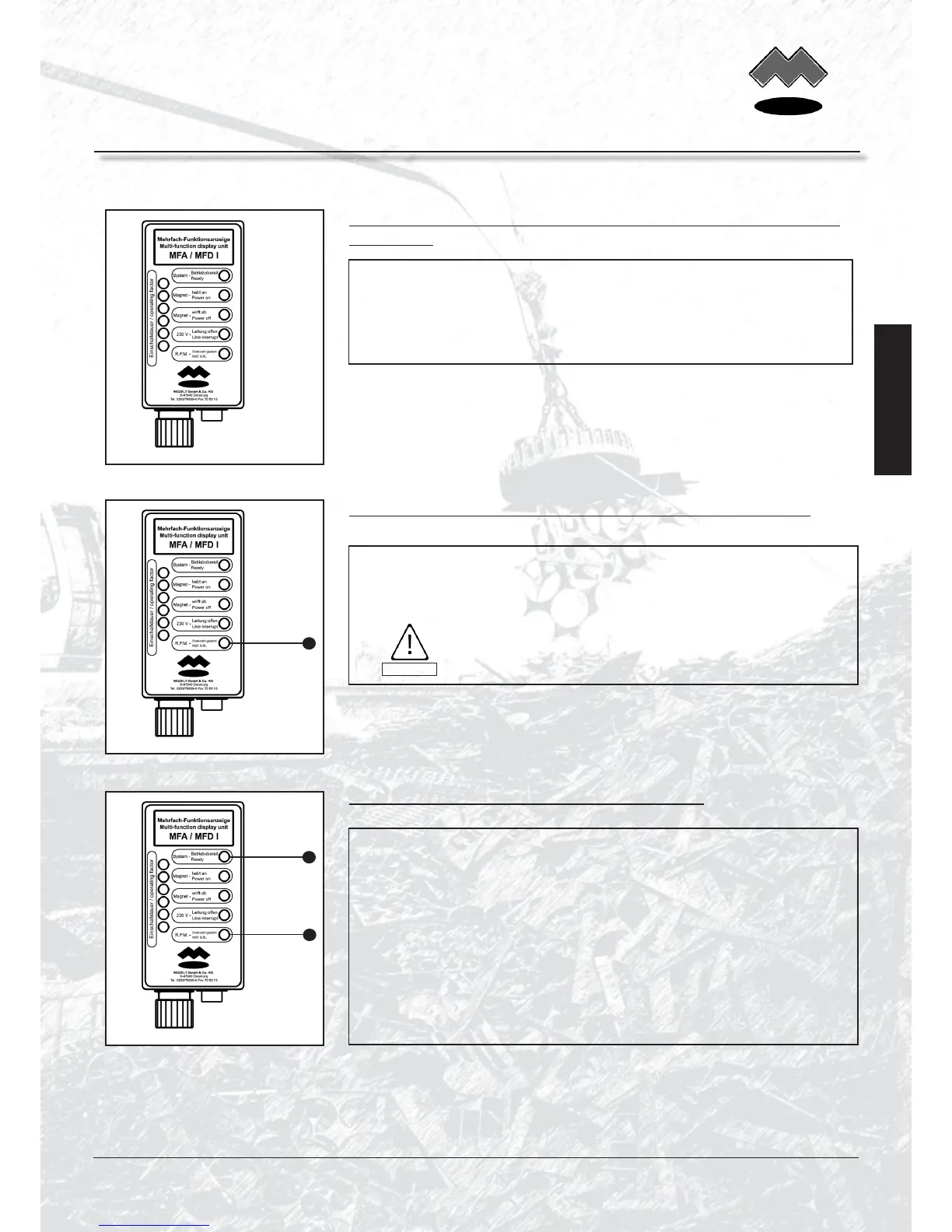

Fig. 18 | MFA does not funcon
Only LED 5 (red), „R.P.M not o.k.“
The indicators „R.P.M not ok“ is lit up and the indicator „Ready“ is o
5
Fig. 19 | MFA indicates „R.M.P not ok“
The indicators „ R.P.M not ok „ and „Ready“ are lit up
1
Fig. 20 | MFA indicates a low speed
Display:
Possible cause:
Display:
Possible cause:
- The generator is running too fast
Display:
Possible cause:
Note:
Turn o the engine immediately and have the
speed checked in order to prevent damage to the
generator !
LED 1 (yellow) „Ready“
LED 5 (red), „R.P.M not o.k”, possibly
also ashing
The generator is running too slow
Normal magnet operaon is only possible to a
limited extent; lower performance is to be expected
LED 5 (permanent), speed 2200 - 2400 rpm
LED 5 (ashing), speed 2400 - 2700 rpm
5
-
