3. Assembly, drawings
3.1 Assembling instrucons
The environmental atmosphere must be free of aggressive dust, corrosive vapours, gases and
liquids. The generator is to be protected against moisture according to IP 55.
Synchronous generators with integrated electronics may not be operated in areas classied
as dangerous, unless they are installed and cered in an approved housing.
The generators are designed for foot assembly.
Make sure that the heat produced by the generator can be dissipated. The venlator screen must always be kept free,
in order to ensure an adequate supply of fresh air.
All heat sources must be considered when determining the ambient temperature, so that the temperature does not
rise above the permissible maximum value for the generator.
3.2 Connecons
1
Protecve conductor connecon
Magnet connecon
Connecon for control cable to the MFA
1
2
3

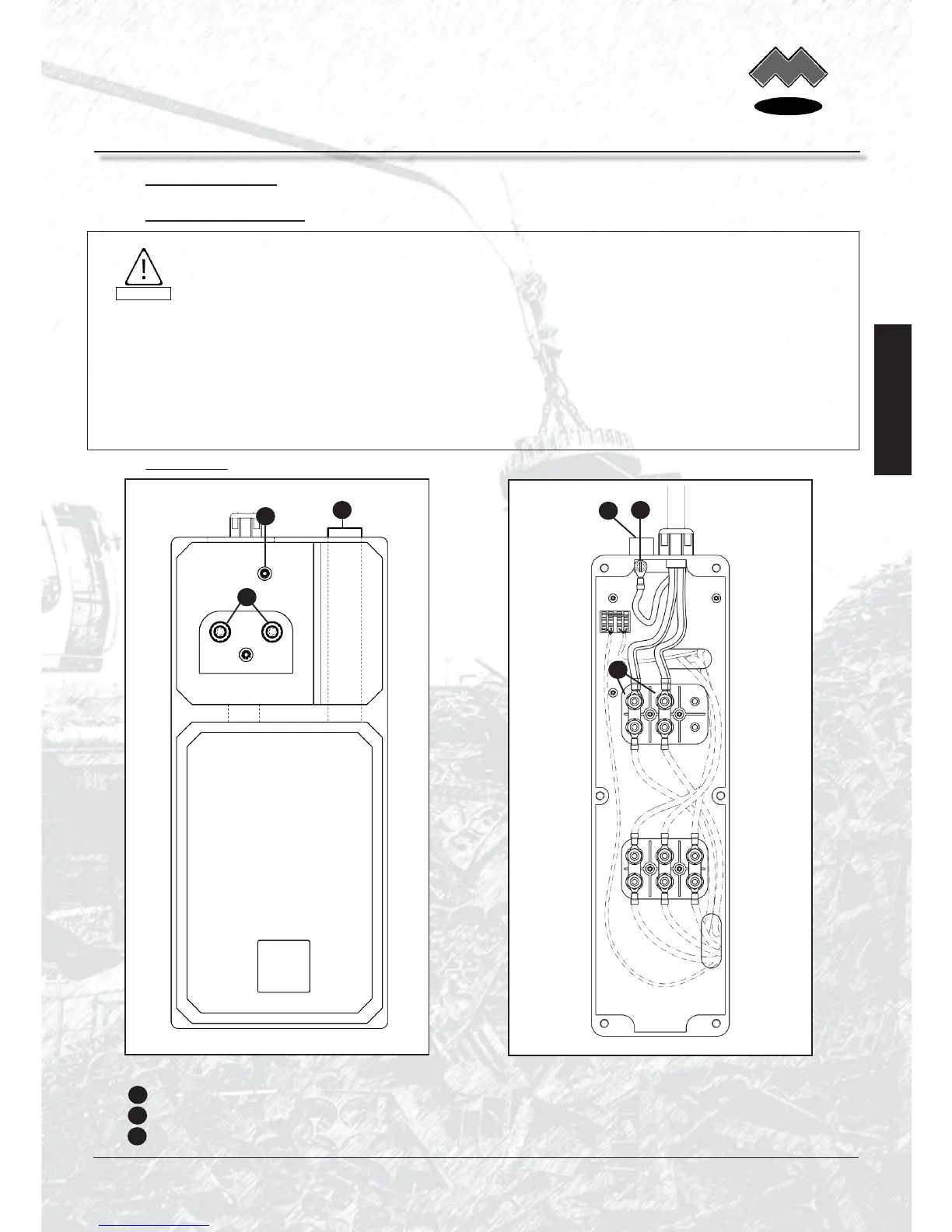

Fig. 3 | Connecon box T4002 13 kW and 20 kW
Control electronics
2
1
3
Fig. 4 | Connecon box T4002 30 kW
1
2
3
