MP sava3 - Oil Cooler and Thermal Switch Wiring; Tank Oil Heater

MP sava3 Hidraulic Power Unit 1 ¼” 1 ½”
V700 - 11/2017
19/40
MTMECMPsava3_700_EN
ADJUSTING
THERMOSTAT
GENERAL
CONNECTION
THERMOSTAT OPENING  30º C ± 3º C
CLOSING  20º C ± 4º C
POWER 500 W +5/-10%
HEAT FLOW SUPPLIED 2 W/cm
2
SUPPLY VOLTAGE 380 V
220 V
THREE-PHASE
COOLER
IMPORTANT: Do not connect the resistance without drowning it into oil
NOTE: The resistance does not work over an oil temperature of 15ºC
3~
TT
TT
TT
R
S
T
2A
2A

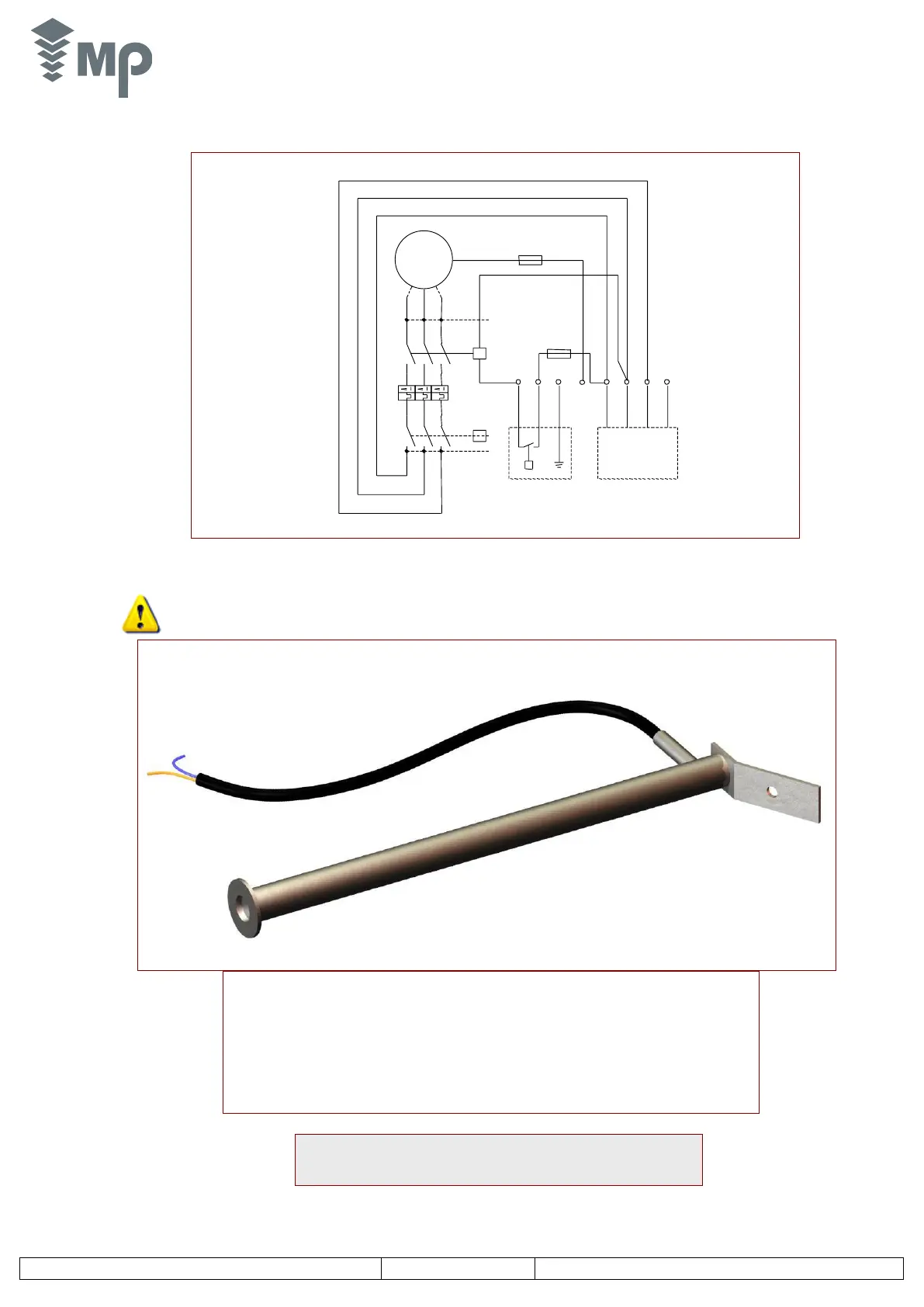

3.2. Oil cooler and thermal switch wiring
4 • TANK OIL HEATER
- To make a correct connection between the power unit and the oil heater, see page number 6 of this technical manual.
