MP sava3 - Steel Pipes and Flexible Hoses Management; Rupture Valve Installation

MP sava3 Hidraulic Power Unit 1 ¼” 1 ½”
V700 - 11/2017
6/40
MTMECMPsava3_700_EN

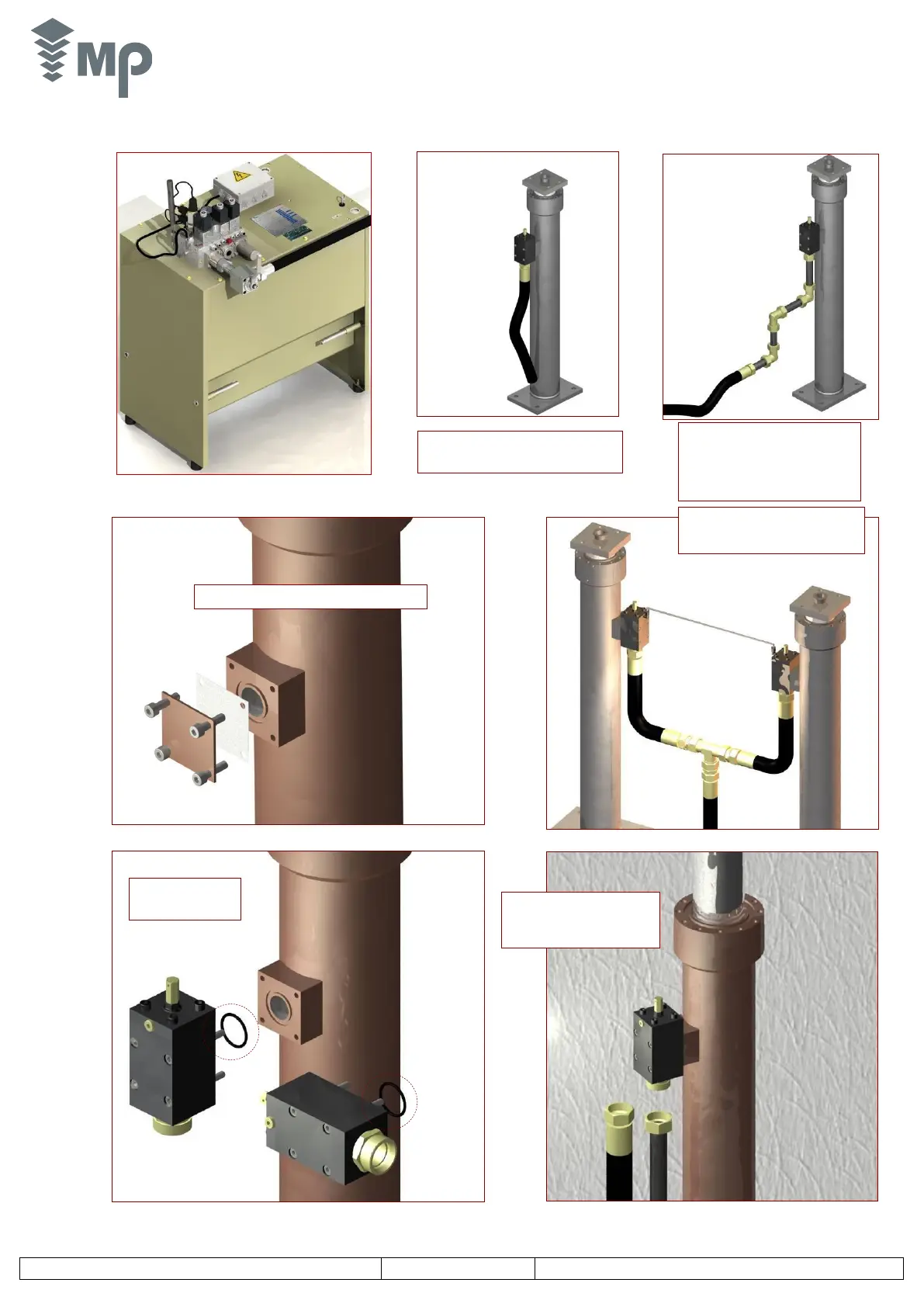

1.4. Steel pipes and flexible hoses
1.5. Rupture valve
FLEXIBLE HOSE ONLY
FLEXIBLE HOSE AND
STEEL PIPE
Avoid up and down
curves in the course of
the hose
IMPORTANT:
Use for lengths > 10 m.
Assemble a piece of Flexible Pipe
behind the Rupture Valve as well as
between the Rigid Pipe and Power
Unit.
Recommended for lengths ≤ 10 m
Avoid leaving the hose completely straight
Remove the protective plate and seal paper
Check the o-ring seal
is properly placed in
its housing
In case of double cylinder installation,
connect the rupture valves each other
by using a Ø6mm steel pipe (fitting
box).
Fix steel or flexible pipe.
Use the cap nut and cutting ring
for steel pipe or flexible hose
with steel tube end
